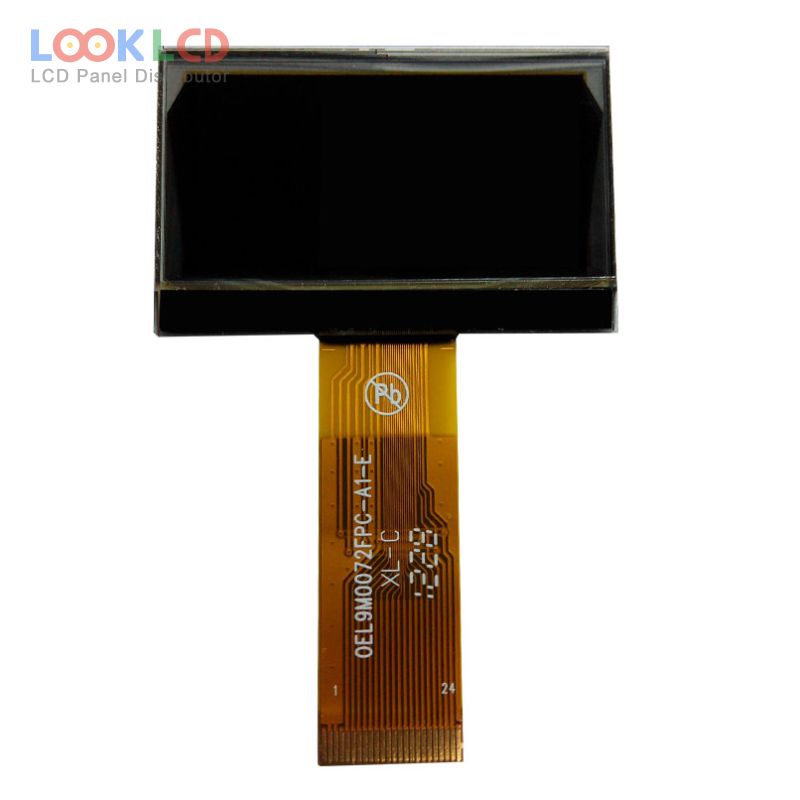

| PartNumber | OEL9M0072-B-E |
| Značka | Other |
| Velikost | 1.54 |
| aplikace | IA |
| Rozlišení | 128×64 |
| Složení | OLED |
| Jas | |
| CR | 10000:1 |
| Barvy | Mono(Blue) |
| Podsvícení | self |
| Rozhraní | CPU/SPI/I²C |
| značka panelu | TRULY |
| panelový model | OEL9M0072-B-E |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 1.54 inch |
| rozlišení | 128×64 |
| aktivní oblast | 35.04×17.51 mm |
| obrys | 42.04×27.22×1.6 mm |
| povrch | |
| jas | |
| kontrastní poměr | 10000 : 1 (Min.) |
| zobrazit barvy | Mono(Blue) (1-bit) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 100Hz |
| řidič ic | COG Built-in SSD1305Z |
| signálové rozhraní | 8-bit 6800/8080 parallel, SPI, I²C, 24 pins |
| aplikace | IA |
