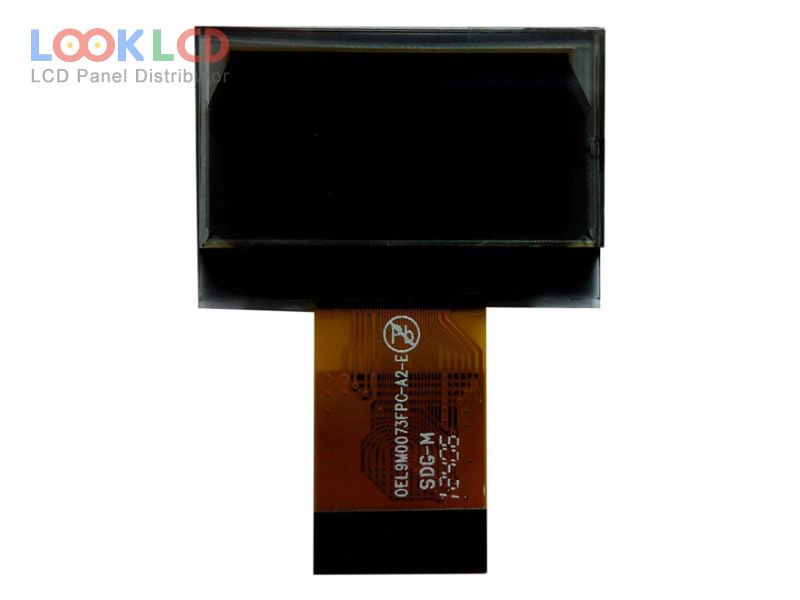

| PartNumber | OEL9M0073-R-E |
| Značka | Other |
| Velikost | 1.0 |
| aplikace | IA |
| Rozlišení | 128×64 |
| Složení | OLED |
| Jas | |
| CR | 10000:1 |
| Barvy | Mono(Red) |
| Podsvícení | self |
| Rozhraní | CPU/SPI/I²C |
| značka panelu | TRULY |
| panelový model | OEL9M0073-R-E |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 1.0 inch |
| rozlišení | 128×64 |
| aktivní oblast | 23.02×11.82 mm |
| obrys | 30×20.16×1.6 mm |
| povrch | |
| jas | |
| kontrastní poměr | 10000 : 1 (Min.) |
| zobrazit barvy | Mono(Red) (1-bit) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| řidič ic | COG Built-in SSD1308Z |
| signálové rozhraní | CPU/SPI/I²C, 24 pins |
| aplikace | IA |
| OEL9M0064-G-E | Other | 2.0 | 128×32 |
| OEL9M0065-W-E | Other | 2.7 | 256×64 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| OEL9M0078-B-E | Other | 1.45 | 132×16 |
| OEL9M0078-W-E | Other | 1.45 | 132×16 |
| OEL9M0078-Y-E | Other | 1.45 | 132×16 |
| OEL9M0082-R-E | Other | 1.1 | 128×128 |
| OEL9M0083-W-E | Other | 0.96 | 128×64 |
| OEL9M0084-B-E | Other | 0.91 | 128×32 |
| OEL9M0084-W-E | Other | 0.91 | 128×32 |
| AA057QD01 | Mitsubishi | 5.7 | 320×240 |
| AC150XA02 | Mitsubishi | 15.0 | 1024×768 |
| COM50H5125XLC | ORTUSTECH | 5.0 | 320×240 |
| G154IJE-L02 | Innolux | 15.4 | 1280×800 |
| LJ640U21 | SHARP | 7.9 | 640×200 |
| LQ12S31C | SHARP | 12.1 | 800×600 |
| LTD104C11U | TOSHIBA | 10.4 | 640×480 |
| NL8060BC31-42D | NLT | 12.1 | 800×600 |
| TX26D203VM2BAA | KOE | 10.4 | 1024×768 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
