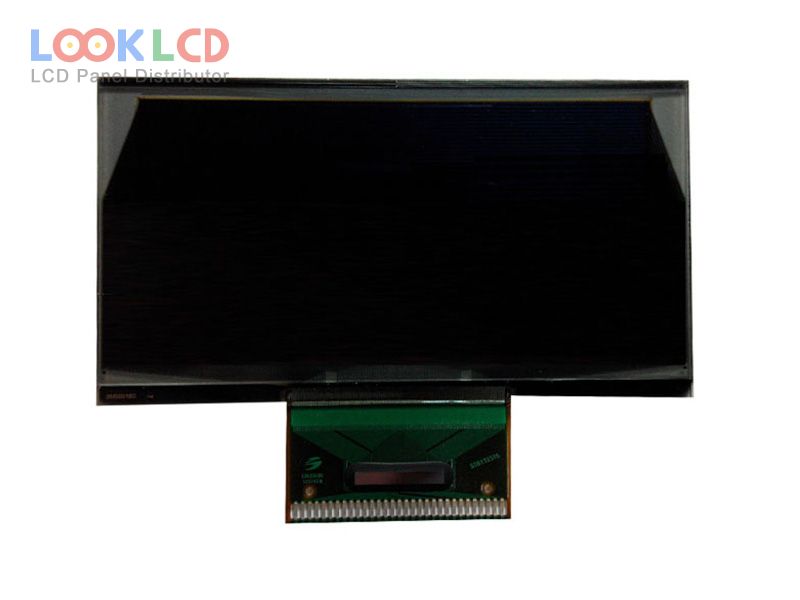

| PartNumber | OEL9M5001-W-E |
| Značka | Other |
| Velikost | 2.7 |
| aplikace | |
| Rozlišení | 128×64 |
| Složení | OLED |
| Jas | |
| CR | 10000:1 |
| Barvy | Grayscale(W) |
| Podsvícení | self |
| Rozhraní | CPU/SPI |
| značka panelu | TRULY |
| panelový model | OEL9M5001-W-E |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 2.7 inch |
| rozlišení | 128×64 |
| aktivní oblast | 61.41×30.69 mm |
| obrys | 73×40.24×2.15 mm |
| povrch | |
| jas | |
| kontrastní poměr | 10000 : 1 (Min.) |
| zobrazit barvy | Grayscale(W) (4-bit) |
| úhel pohledu | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvence | 100Hz |
| řidič ic | TAB Built-in SSD1325T6R1 |
| signálové rozhraní | 8-bit 6800/8080 parallel, SPI, 30 pins |
| vstupní napětí | 3.0/13.0V (Typ.)(VDD/VCC) |
| OEL9M5001-B-E | Other | 2.7 | 128×64 |
| OEL9M5001-G-E | Other | 2.7 | 128×64 |
| OEL9M5001-R-E | Other | 2.7 | 128×64 |
| OEL9M5001-W-E | Other | 2.7 | 128×64 |
| OEL9M5001-Y-E | Other | 2.7 | 128×64 |
| OEL9M5003-B-E | Other | 2.7 | 128×64 |
| OEL9M5003-G-E | Other | 2.7 | 128×64 |
| OEL9M5003-R-E | Other | 2.7 | 128×64 |
| OEL9M5003-W-E | Other | 2.7 | 128×64 |
| OEL9M5003-Y-E | Other | 2.7 | 128×64 |
| AL1602B | Other | 2.3 | 16×2 |
| DMC-16117A | Kyocera | 2.4 | 16×1 |
| HT14X14-101 | HYDIS | 14.0 | 1024×768 |
| LQ71Y03 | SHARP | 7.1 | 800×480 |
| LS013B4DN02 | SHARP | 1.35 | 96×96 |
| LSUGC202XA | ALPS | 8.9 | 640×240 |
| LTA065A043F | TOSHIBA | 6.5 | 640×480 |
| LTD121EA6G | TOSHIBA | 12.1 | 1024×768 |
| LTM12C268F | TOSHIBA | 12.1 | 800×600 |
| RGS11128036WR014 | RiTdisplay | 1.1 | 128×36 |
