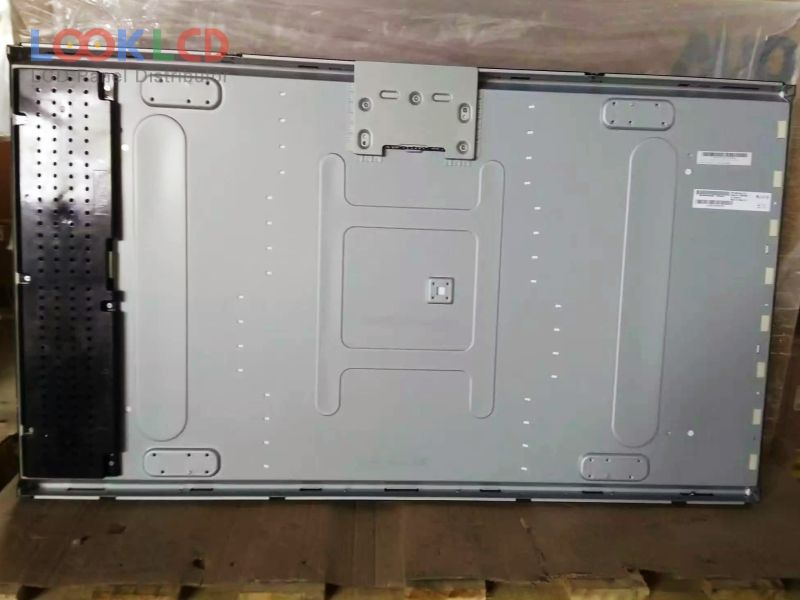

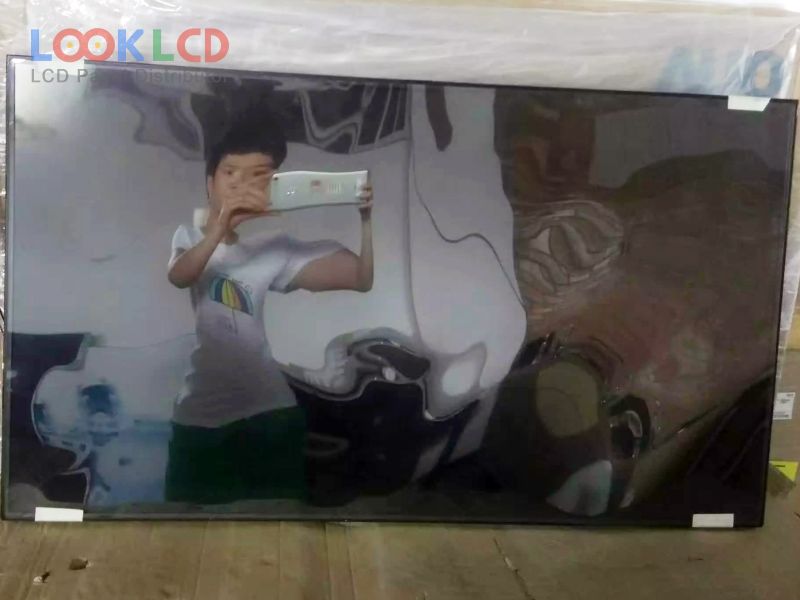

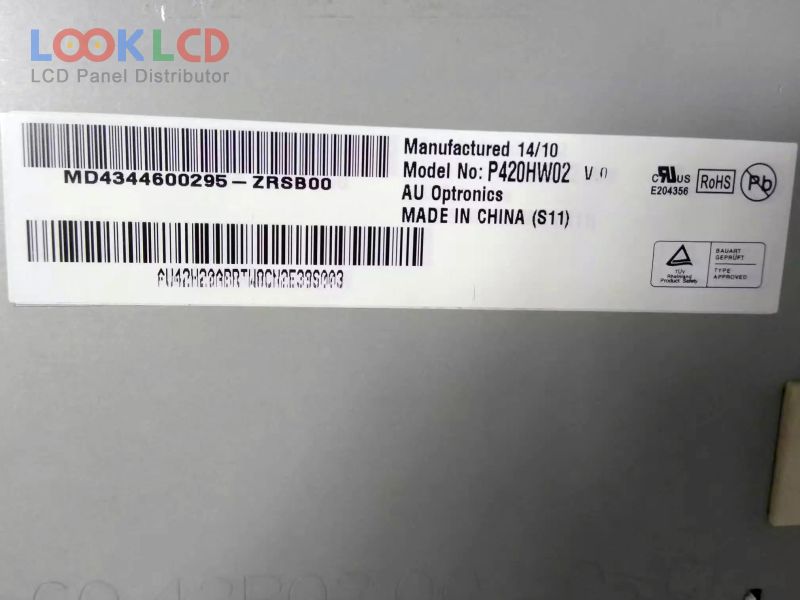

| PartNumber | P420HW02 V0 |
| Značka | AUO |
| Velikost | 42 |
| aplikace | PID |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 700 |
| CR | 3500:1 |
| Barvy | 16.7M/1.07B |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | P420HW02 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 42 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | AMVA3, Normally Black, Transmissive |
| aktivní oblast | 930.24×523.26 mm |
| obrys | 957.45×550.2×54.2 mm, Videowall Seam 27.2 mm |
| povrch | Antiglare (Haze 11%), Hard coating (3H) |
| jas | 700 cd/m² (Typ.) |
| kontrastní poměr | 3500:1 (Typ.) |
| zobrazit barvy | 16.7M/1.07B (8-bit / 10-bit), CIE193172% |
| Doba odezvy | 8 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 16 pcsCCFLEmbedded (Inverter) |
| signálové rozhraní | LVDS (2 ch, 8/10-bit), 51 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | PID |
| LC420DUE-FGA3 | LG Display | 42 | 1920×1080 |
| LC420DUN-SER1 | LG Display | 42 | 1920×1080 |
| LC420EUD-SDM1 | LG Display | 42 | 1920×1080 |
| LC420EUN-SDV1 | LG Display | 42 | 1920×1080 |
| LC420EUN-SDV4 | LG Display | 42 | 1920×1080 |
| P420HVN01.0 | AUO | 42 | 1920×1080 |
| P420HW01 V1 | AUO | 42 | 1920×1080 |
| P420HW02 V0 | AUO | 42 | 1920×1080 |
| T420HVN08.0 | AUO | 42 | 1920×1080 |
| V420H2-L02 | Innolux | 42 | 1920×1080 |
| BRS420H2 | 42 | 1920×1080 | |
| LD550EUE-FHB1 | LG Display | 55 | 1920×1080 |
| LTI290LN01 | Samsung | 29.0 | 1920×540 |
| LTI460AA03 | Samsung | 46 | 1366×768 |
| LTI460HN03 | Samsung | 46 | 1920×1080 |
| LTI700HD01 | Samsung | 70 | 1920×1080 |
| P320HVN02.1 | AUO | 31.5 | 1920×1080 |
| P650HVF01.0 | AUO | 65 | 1920×1080 |
| P650HVN05.0 | AUO | 65 | 1920×1080 |
| RX840-C10 | ROGIN | 84 | 3840×2160 |
