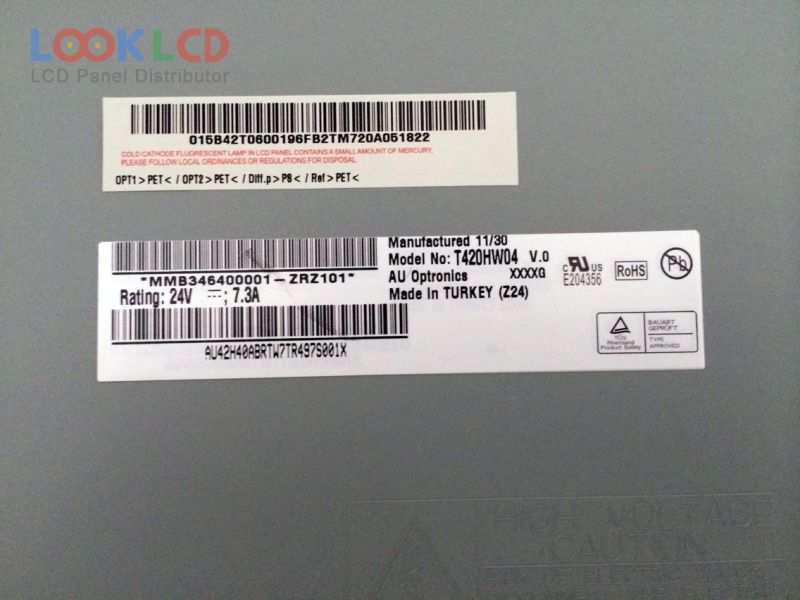

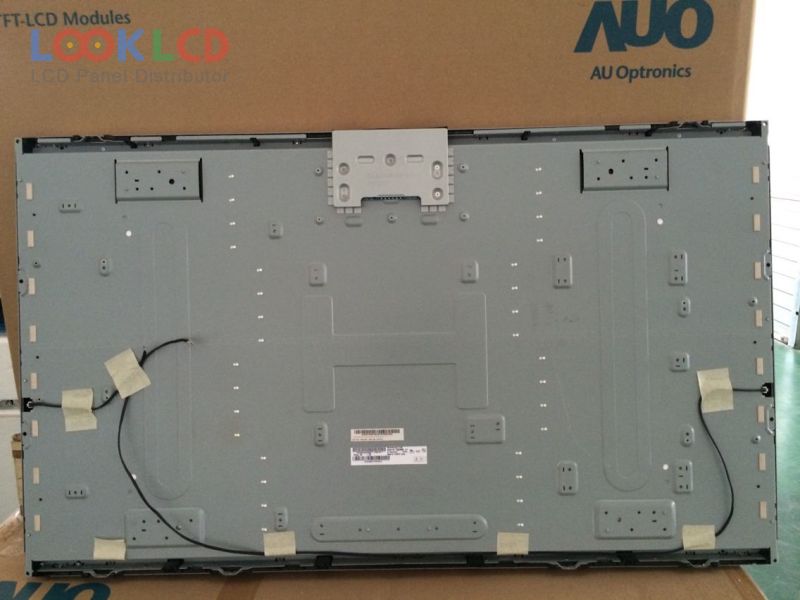

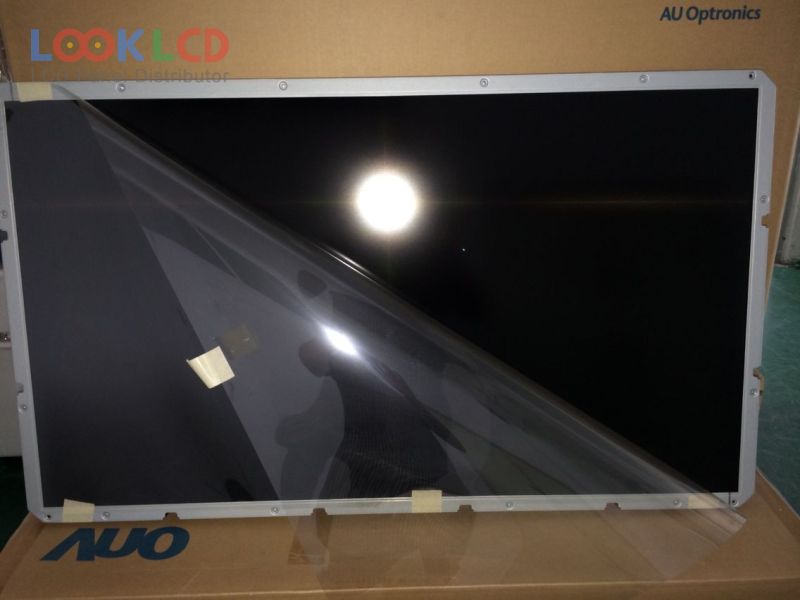

| PartNumber | T420HW04 V0 |
| Značka | AUO |
| Velikost | 42 |
| aplikace | LCTV |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 500 |
| CR | 4000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | T420HW04 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 42 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | AMVA3, Normally Black, Transmissive |
| aktivní oblast | 930.24×523.26 mm |
| obrys | 983×576 mm |
| povrch | Antiglare (Haze 11%), Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 4000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 6.5 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 16 pcsCCFLEmbedded (Balance board) |
| signálové rozhraní | LVDS (2 ch, 8-bit), 51 pins |
| vstupní napětí | 12.0V (Typ.) |
| rohs: | |
| aplikace | LCTV |
| T420HB01 V1 | AUO | 42 | 1920×1080 |
| T420HVN01.1 CELL | AUO | 42 | 1920×1080 |
| T420HVN04.0 | AUO | 42 | 1920×1080 |
| T420HVN05.2 | AUO | 42 | 1920×1080 |
| T420HW04 V2 | AUO | 42 | 1920×1080 |
| T420HW04 V3 | AUO | 42 | 1920×1080 |
| T420HW06 V5 | AUO | 42 | 1920×1080 |
| T420HW07 V5 | AUO | 42 | 1920×1080 |
| T420HW08 V9 | AUO | 42 | 1920×1080 |
| T420HW09 V2 | AUO | 42 | 1920×1080 |
| LC420EUN-SFM1 | LG Display | 42 | 1920×1080 |
| LC430DUE-FJM1 | LG Display | 43 | 1920×1080 |
| LTA400HF02 | Samsung | 40 | 1920×1080 |
| LTF520HB01 | Samsung | 52 | 1920×1080 |
| LTY460HN06 | Samsung | 46 | 1920×1080 |
| T315XW04 V1 | AUO | 31.5 | 1366×768 |
| T320HVN01.0 | AUO | 31.5 | 1920×1080 |
| V500DK2-KS1 Rev.C1 | Innolux | 50 | 3840×2160 |
| V580HJ1-LE6 | Innolux | 58 | 1920×1080 |
| V580HK1-LE6 | Innolux | 58 | 1920×1080 |
