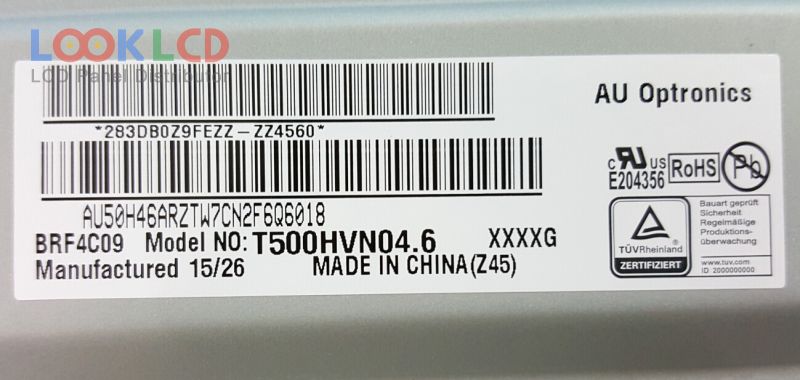

| PartNumber | T500HVN04.6 |
| Značka | AUO |
| Velikost | 50 |
| aplikace | LCTV |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 300 |
| CR | 3000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | T500HVN04.6 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 50 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | AMVA3, Normally Black, Transmissive |
| aktivní oblast | 1095.84×616.41 mm |
| obrys | 1115×638.4×21.8 mm |
| povrch | Antiglare (Haze 2%), Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 3000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 6.5 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 51 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
