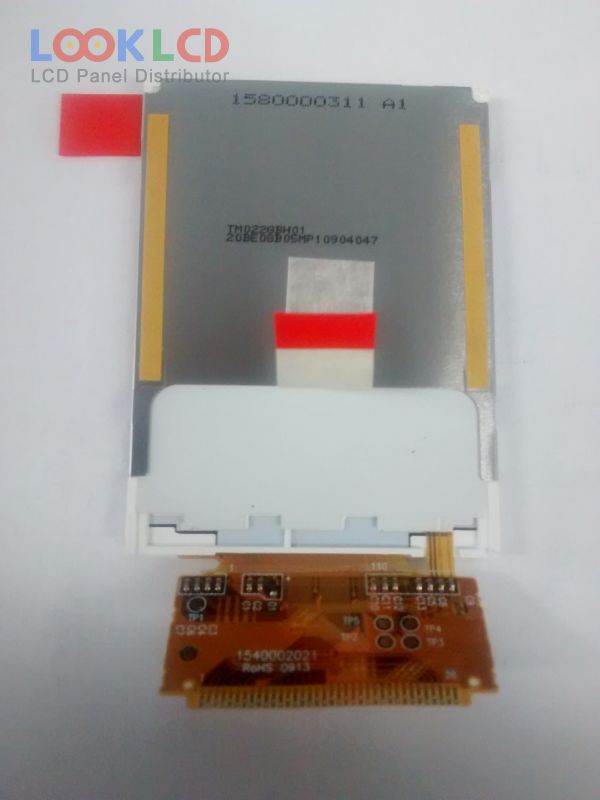

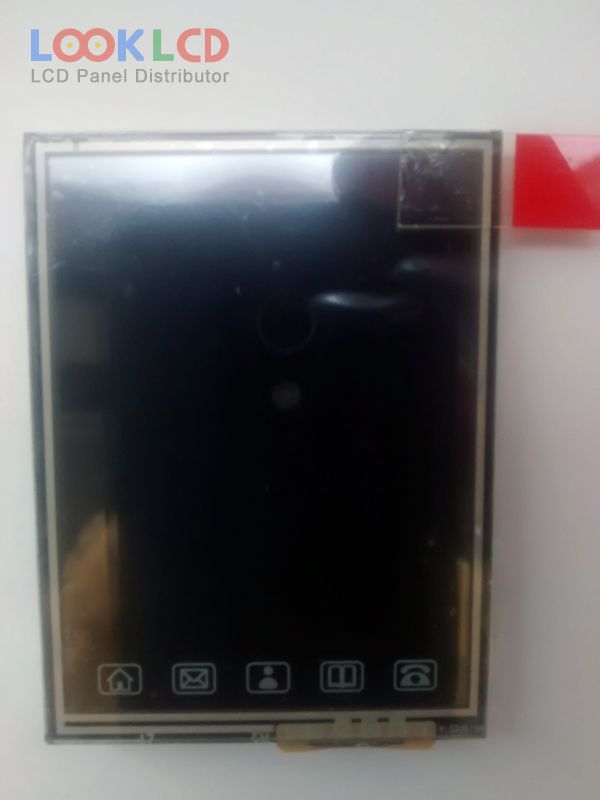

| PartNumber | TM022GBH01 |
| Značka | Tianma |
| Velikost | 2.2 |
| aplikace | MPH |
| Rozlišení | 176×220 |
| Složení | LCM |
| Jas | 250 |
| CR | 350:1 |
| Barvy | 65K/262K |
| Podsvícení | WLED |
| Rozhraní | CPU |
| značka panelu | TIANMA |
| panelový model | TM022GBH01 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 2.2 inch |
| rozlišení | 176(RGB)×220 , QCIF+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 34.848×43.56 mm |
| obrys | 41.7×56.16 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 65K/262K , CIE193160% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 45/45/40/20 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1S3PWLEDWithout Driver |

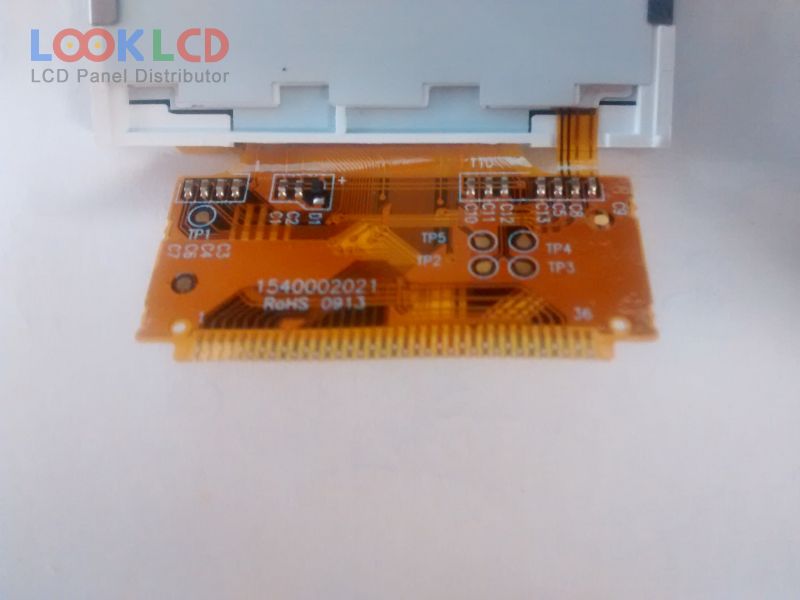

| signálové rozhraní | CPU, 36 pins |
| vstupní napětí | 2.8V (Typ.)(VDD) |
| aplikace | MPH |
