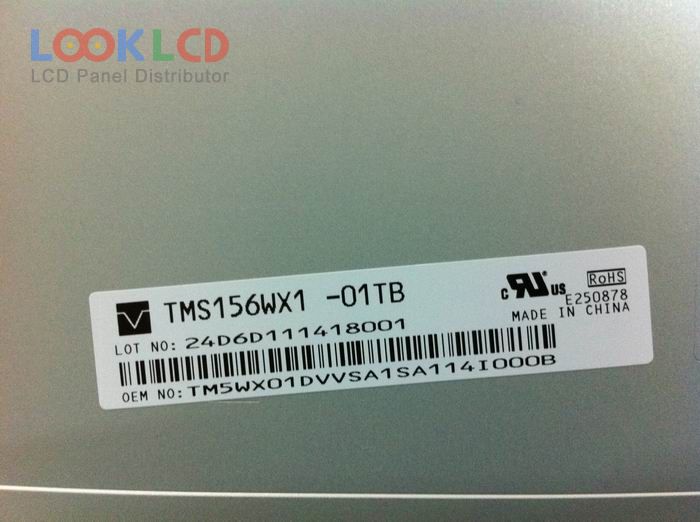

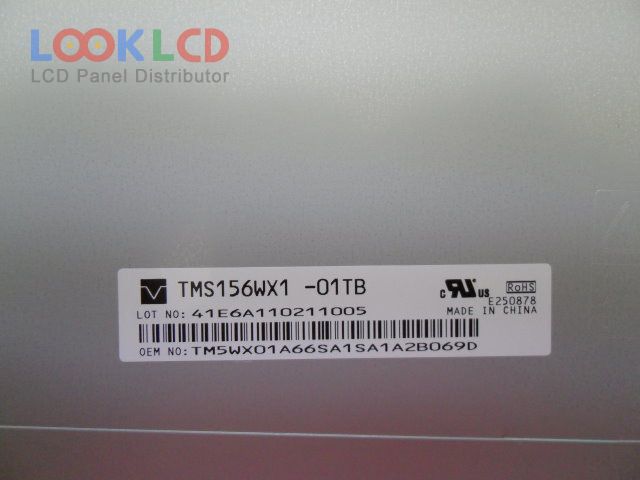

| PartNumber | TMS156WX1-01TB |
| Značka | Tianma |
| Velikost | 15.6 |
| aplikace | DMPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 250 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | AVIC |
| panelový model | TMS156WX1-01TB 4 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.232×193.536 mm |
| obrys | 363.8×215.9×14.8 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193160% |
| Doba odezvy | 2/6 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
