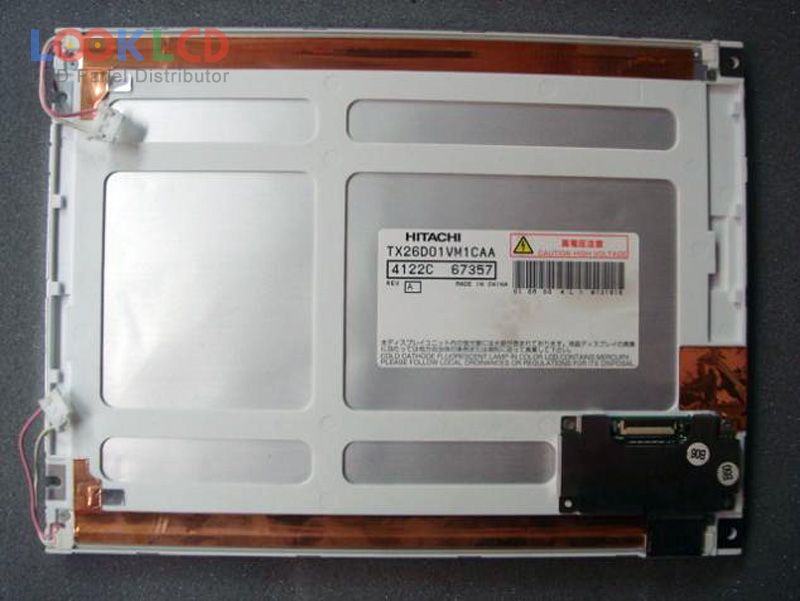

| PartNumber | TX26D01VM1CAA |
| Značka | KOE |
| Velikost | 10.4 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 350 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | HITACHI |
| panelový model | TX26D01VM1CAA |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 211.2×158.4 mm |
| obrys | 243×181.6×12.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 30/20 (Typ.)(Tr/Td) |
| úhel pohledu | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 32 pins |
| vstupní napětí | 3.3V (Typ.)(VDD) |
| rohs: | |
| aplikace | IA |
| HT10X21-311 | HYDIS | 10.4 | 1024×768 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| LQ10W03 | SHARP | 10.4 | 1024×600 |
| NL8060AC26-04 | NLT | 10.4 | 800×600 |
| NL8060AC26-52D | NLT | 10.4 | 800×600 |
| PD104SLG | E Ink | 10.4 | 800×600 |
| TX26D01VM1CAA | KOE | 10.4 | 640×480 |
| TX26D02VM1CAA | KOE | 10.4 | 640×480 |
| TX26D05VM1CAA | KOE | 10.4 | 640×480 |
| TX26D06VM1CAA | KOE | 10.4 | 640×480 |
| DLH1055 | LiteMax | 10.4 | 1024×768 |
| EL320.240.36 IN AG | Lumineq | 5.7 | 320×240 |
| G150XTN03.1 | AUO | 15.0 | 1024×768 |
| LM057QB1T09 | SHARP | 5.7 | 320×240 |
| LP064V1 | LG Display | 6.4 | 640×480 |
| LQ084S3DG01 | SHARP | 8.4 | 800×600 |
| LQ121S1DG21 | SHARP | 12.1 | 800×600 |
| LTD121C30S | TOSHIBA | 12.1 | 800×600 |
| M606-L24A | NAN YA | 5.7 | 320×240 |
| NL6448AC30-12 | NLT | 9.4 | 640×480 |
