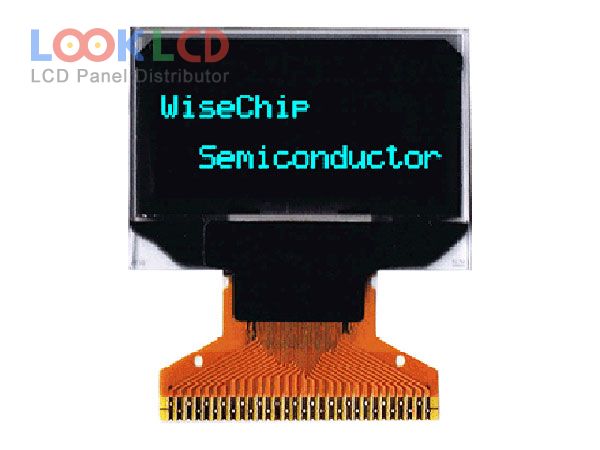

| PartNumber | UG-2864HLBEG01 |
| Značka | WiseChip |
| Velikost | 0.96 |
| aplikace | IA |
| Rozlišení | 128×64 |
| Složení | OLED |
| Jas | 100 |
| CR | 2000:1 |
| Barvy | Mono(Blue) |
| Podsvícení | self |
| Rozhraní | CPU/SPI/I²C |
| značka panelu | Univision |
| panelový model | UG-2864HLBEG01 |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 0.96 inch |
| rozlišení | 128×64 |
| aktivní oblast | 21.744×10.864 mm |
| obrys | 26.7×19.26×1.55 mm |
| povrch | |
| jas | 100 cd/m² (Typ.) |
| kontrastní poměr | 2000 : 1 (Typ.) |
| zobrazit barvy | Mono(Blue) (1-bit) |
| úhel pohledu | 80/80/80/80 (Min.)(L/R/U/D) |
| řidič ic | Built-in SSD1306 |
| signálové rozhraní | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| vstupní napětí | 2.8/9V (Typ.)(VDD/VCC) |
| rohs: | |
| aplikace | IA |
