| PartNumber | V260B1-L02 |
| Značka | Innolux |
| Velikost | 26.0 |
| aplikace | LCTV |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 450 |
| CR | 800:1 |
| Barvy | 16.2M |
| Podsvícení | CCFL |
| Rozhraní | RSDS |
| značka panelu | CMO |
| panelový model | V260B1-L02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 26.0 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 575.769×323.712 mm |
| obrys | 626×373 mm |
| povrch | |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC), CIE193172% |
| Doba odezvy | 3/5 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |

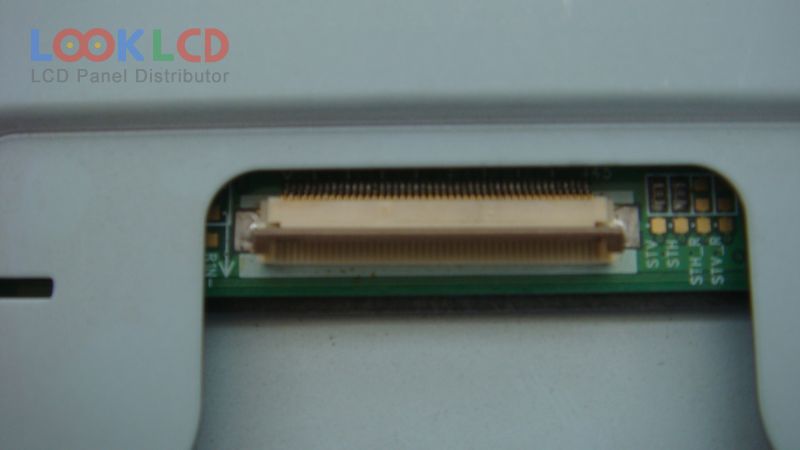

| signálové rozhraní | RSDS (1 Channel), 45 pins |
| vstupní napětí | 5.3.3/5.0V (Typ.)(VDD/VIN5) |
| aplikace | LCTV |
