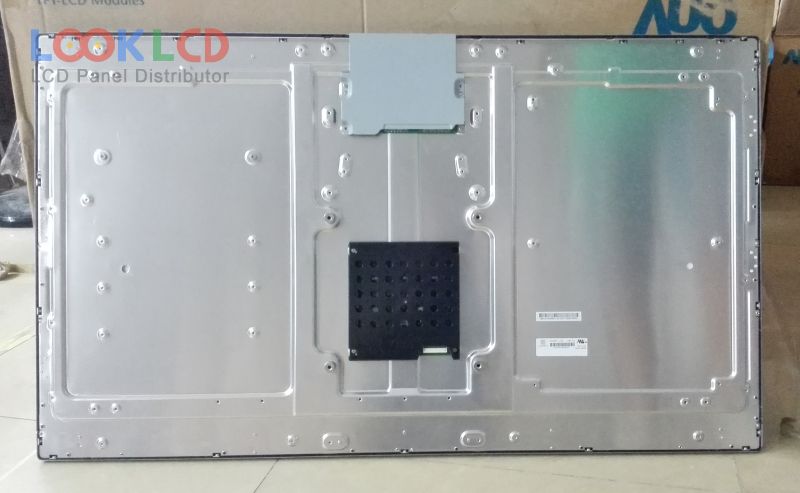

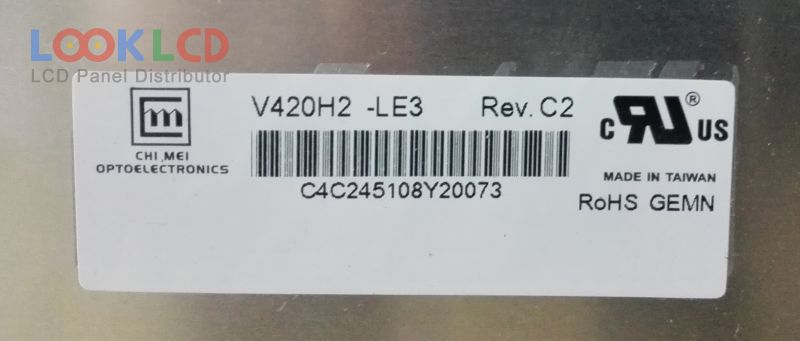

| PartNumber | V420H2-LE3 |
| Značka | Innolux |
| Velikost | 42 |
| aplikace | LCTV |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 450 |
| CR | 6000:1 |
| Barvy | 1.07B |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | V420H2-LE3 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 42 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | Super MVA, Normally Black, Transmissive |
| aktivní oblast | 930.24×523.26 mm |
| obrys | 973.24×566.26 mm |
| povrch | Antiglare (Haze 11%), Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 6000:1 (Typ.) |
| zobrazit barvy | 1.07B (8-bit + Hi-FRC), CIE193172% |
| Doba odezvy | 5.5 (Typ.)(G to G) |
| úhel pohledu | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekvence | 120Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (4 ch, 10-bit), 92 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
| V420H1-LH4 | Innolux | 42 | 1920×1080 |
| V420H1-LH5 | Innolux | 42 | 1920×1080 |
| V420H1-LN1 | Innolux | 42 | 1920×1080 |
| V420H2-L01 | Innolux | 42 | 1920×1080 |
| V420H2-L05 | Innolux | 42 | 1920×1080 |
| V420H2-LS1 | Innolux | 42 | 1920×1080 |
| V420H2-LS2 Rev.C7 | Innolux | 42 | 1920×1080 |
| V420HJ1-LE6 | Innolux | 42 | 1920×1080 |
| V420HK1-LS5 | Innolux | 42 | 1920×1080 |
| V420HK1-LS5 Rev.C7 | Innolux | 42 | 1920×1080 |
| A201SN02 V5 | AUO | 20.1 | 800×600 |
| LC320WXN-SAC1 | LG Display | 31.5 | 1366×768 |
| LTA320HN02-W | Samsung | 31.5 | 1920×1080 |
| LTA460HT-L04 | Samsung | 46 | 1920×1080 |
| MT4601B02-1 | CSOT | 46 | 1920×1080 |
| V216B1-L01 | Innolux | 21.6 | 1366×768 |
| V315H4-LE3 | Innolux | 31.5 | 1920×1080 |
| V420H2-L02 | Innolux | 42 | 1920×1080 |
| V546H1-LH2 | Innolux | 55 | 1920×1080 |
| V580HJ1-PD6 | Innolux | 58 | 1920×1080 |
