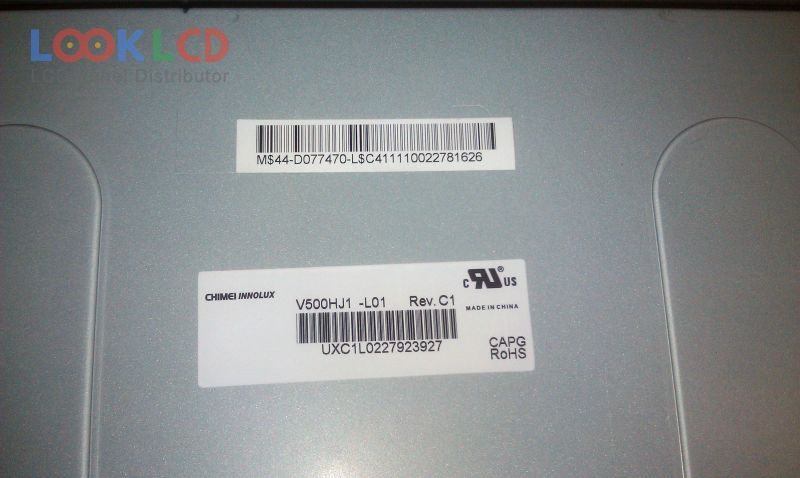

| PartNumber | V500HJ1-L01 |
| Značka | Innolux |
| Velikost | 50 |
| aplikace | LCTV |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 350 |
| CR | 4000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | V500HJ1-L01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 50 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | Super MVA, Normally Black, Transmissive |
| aktivní oblast | 1095.84×616.41 mm |
| obrys | 1142.84×663.41 mm |
| povrch | Antiglare (Haze 3.5%), Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 4000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 8 (Typ.)(G to G) |
| úhel pohledu | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | CCFLEmbedded (Balance board) |
| signálové rozhraní | LVDS (2 ch, 8-bit), 51 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
