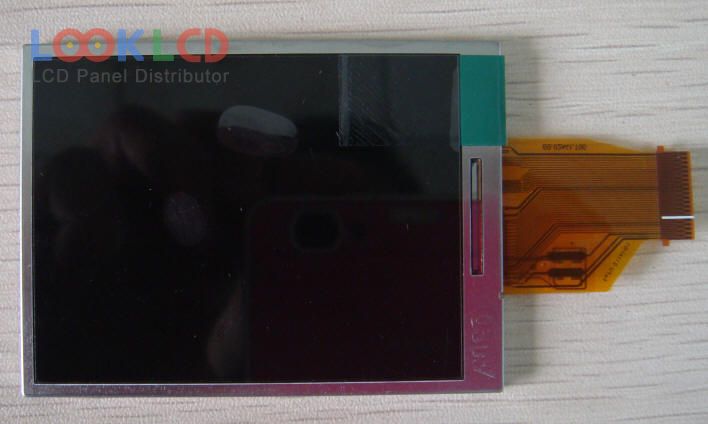

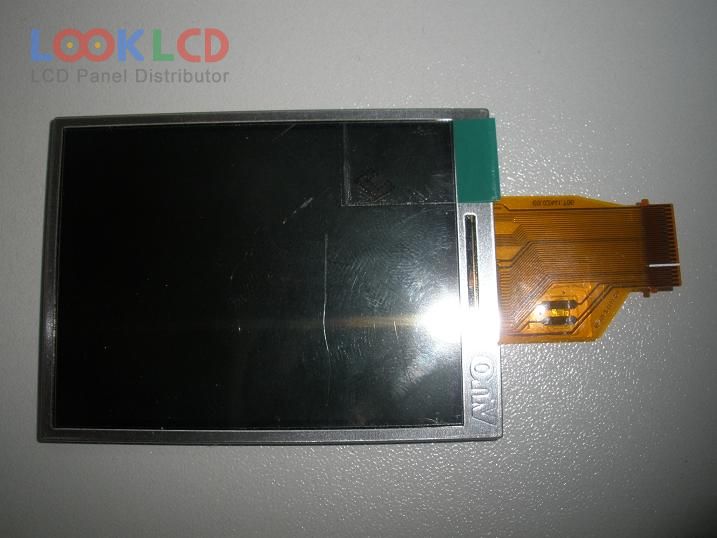

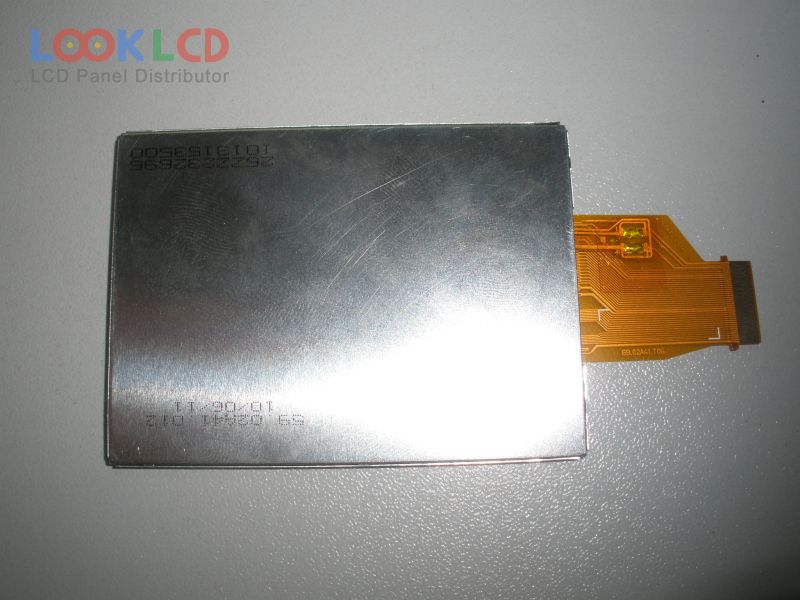

| PartNumber | A027DN03 V1 |
| Značka | AUO |
| Velikost | 2.7 |
| aplikace | DSC |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 350 |
| CR | 300:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Serial RGB |
| značka panelu | AUO |
| panelový model | A027DN03 V1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 2.7 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 54×40.5 mm |
| obrys | 63.5×46.6×2.4 mm |
| povrch | Glare (Haze 0%) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 10/25 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2S1PWLEDWithout Driver |
| signálové rozhraní | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| vstupní napětí | 3.3/13/-10V (VDD/VGH/VGL) |
| aplikace | DSC |
| A027DN01 V1 | AUO | 2.7 | 320×240 |
| A027DN01 VQ | AUO | 2.7 | 320×240 |
| A027DN01 VR | AUO | 2.7 | 320×240 |
| A027DN03 V3 | AUO | 2.7 | 320×240 |
| A027DN03 V7 | AUO | 2.7 | 320×240 |
| A027DN03 V9 | AUO | 2.7 | 320×240 |
| A027DN04 V3 | AUO | 2.7 | 320×240 |
| A027DN04 V8 | AUO | 2.7 | 320×240 |
| A027DTN01.2 | AUO | 2.7 | 320×240 |
| A027DTN01.3 | AUO | 2.7 | 320×240 |
| A024CN03 V2 | AUO | 2.4 | 480×234 |
| A025DL02 V5 | AUO | 2.5 | 320×240 |
| CT025TN01 | Innolux | 2.5 | 320×240 |
| DLC0350FVG-5 | Other | 3.5 | 320×240 |
| LQ025A3DD01 | SHARP | 2.5 | 480×240 |
| LQ035Q1DH02 | SHARP | 3.5 | 320×240 |
| LS027T3DG01 | SHARP | 2.7 | 320×240 |
| PA035XSL | E Ink | 3.5 | 320×234 |
| TD025THEA3 | TPO | 2.5 | 320×240 |
| TM027CDH19 | Tianma | 2.7 | 320×240 |
