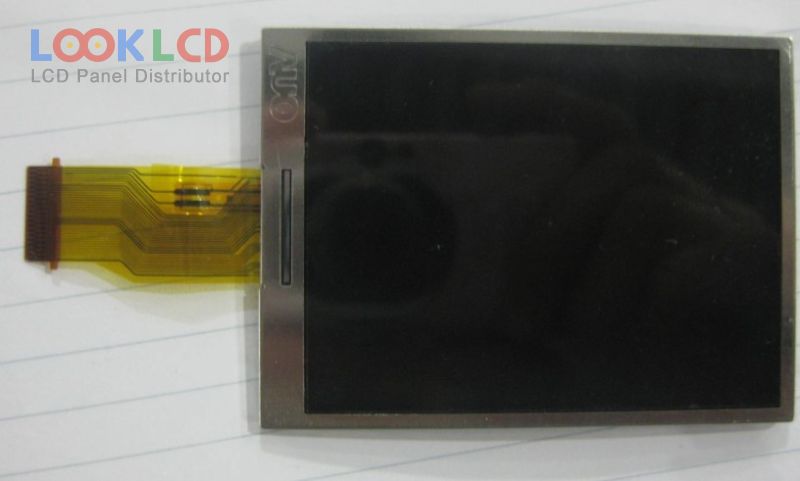

| PartNumber | A030DN04 V0 |
| Značka | AUO |
| Velikost | 3.0 |
| aplikace | DSC |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 350 |
| CR | 300:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Serial RGB |
| značka panelu | AUO |
| panelový model | A030DN04 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.0 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 60×45 mm |
| obrys | 70.2×51.4 mm |
| povrch | Hard coating |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 10/25 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 2S1PWLEDWithout Driver |
| signálové rozhraní | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| vstupní napětí | 3.3V (Typ.)(VDD) |
| aplikace | DSC |
| 990001086 | Innolux | 3.0 | |
| A030DN01 V0 | AUO | 3.0 | 320×240 |
| A030DN01 V9 | AUO | 3.0 | 320×240 |
| A030DN01 VC | AUO | 3.0 | 320×240 |
| A030DN04 V0 | AUO | 3.0 | 320×240 |
| A030DN05 V0 | AUO | 3.0 | 320×240 |
| A030DW01 V0 | AUO | 3.0 | 320×240 |
| A030DW01 V1 | AUO | 3.0 | 320×240 |
| A030DW01 V3 | AUO | 3.0 | 320×240 |
| AMS300FW01-0 | Samsung | 3.0 | 240×400 |
| 990000738 | TPO | 3.5 | 320×240 |
| A024CN02 VJ | AUO | 2.4 | 480×234 |
| A025DL02 V5 | AUO | 2.5 | 320×240 |
| A027DN01 VB | AUO | 2.7 | 320×240 |
| A027DTN01.3 | AUO | 2.7 | 320×240 |
| A030DW01 V0 | AUO | 3.0 | 320×240 |
| A030JTN01.1 | AUO | 3.0 | 960×480(dot) |
| LH250Q01-TH02 | LG Display | 2.5 | 320×240 |
| TM027CDH19 | Tianma | 2.7 | 320×240 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
