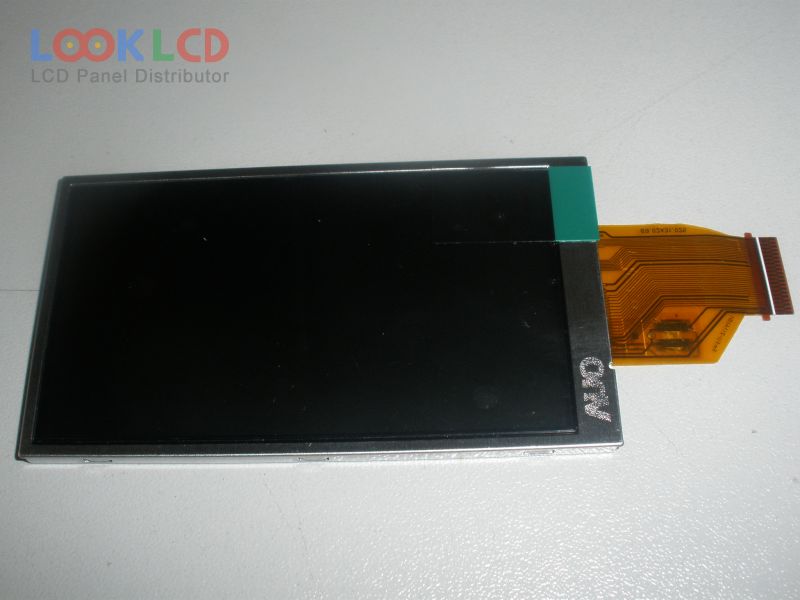

| PartNumber | A030DW01 V0 |
| Značka | AUO |
| Velikost | 3.0 |
| aplikace | DSC |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 250 |
| CR | 300:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Serial RGB |
| značka panelu | AUO |
| panelový model | A030DW01 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.0 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 65.52×36.84 mm |
| obrys | 74.92×42.74 mm |
| povrch | Hard coating |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 15/20 (Typ.)(Tr/Td) |
| úhel pohledu | 55/55/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 2S1PWLED |
| signálové rozhraní | Serial RGB (8-bit) + SPI, CCIR601/656, 40 pins |
| vstupní napětí | 3.3/15/-10V (Typ.)(VDD/VGH/VGL) |
| aplikace | DSC |
