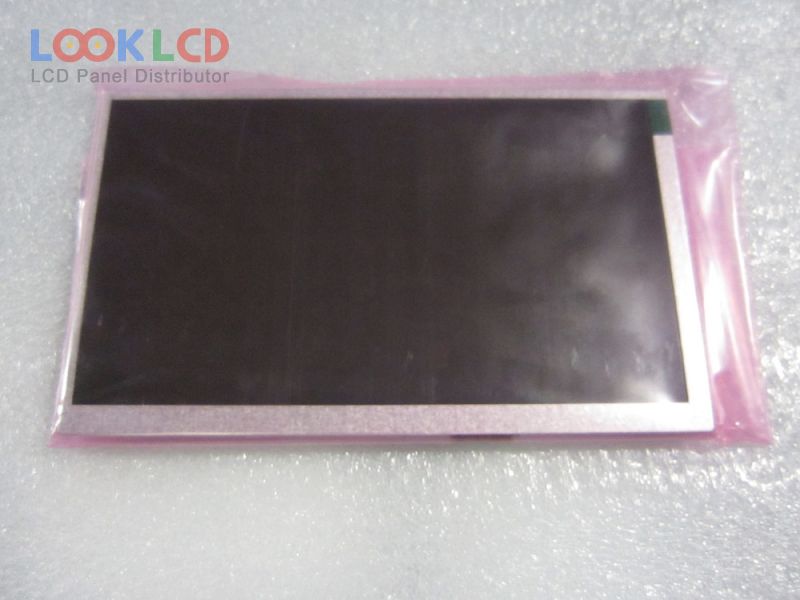

| PartNumber | A070FW03 V3 |
| Značka | AUO |
| Velikost | 7.0 |
| aplikace | VDP |
| Rozlišení | 480×234 |
| Složení | LCM |
| Jas | 300 |
| CR | 400:1 |
| Barvy | |
| Podsvícení | CCFL |
| Rozhraní | Analog |
| značka panelu | AUO |
| panelový model | A070FW03 V3 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 480(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 154.08×86.58 mm |
| obrys | 164.9×100 mm |
| povrch | Antiglare (Haze 5.5%) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | |
| Doba odezvy | 12/18 (Typ.)(Tr/Td) |
| úhel pohledu | 55/55/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | TFT Specific Analog RGB, 26 pins |
| vstupní napětí | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | VDP |
| A070FW01 | AUO | 7.0 | 480×234 |
| A070FW03 V1 | AUO | 7.0 | 480×234 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| A070FW03 V4 | AUO | 7.0 | 480×234 |
| A070FW03 V6 | AUO | 7.0 | 480×234 |
| A070FW03 V7 | AUO | 7.0 | 480×234 |
| A070FW03 V8 | AUO | 7.0 | 480×234 |
| A070FW03 VB | AUO | 7.0 | 480×234 |
| A070FW03 VD | AUO | 7.0 | 480×234 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| A056DN01 | AUO | 5.6 | 320×234 |
| A070FW03 VD | AUO | 7.0 | 480×234 |
| AT050TN22 V.1 | Innolux | 5.0 | 640×480 |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| PA064DS1 | E Ink | 6.4 | 320×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
