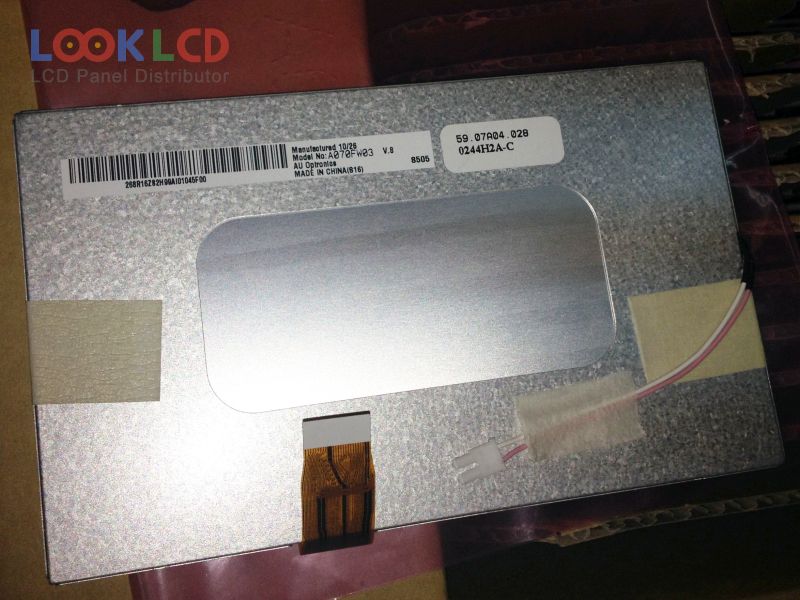

| PartNumber | A070FW03 V8 |
| Značka | AUO |
| Velikost | 7.0 |
| aplikace | VDP |
| Rozlišení | 480×234 |
| Složení | LCM |
| Jas | 300 |
| CR | 400:1 |
| Barvy | Full color |
| Podsvícení | CCFL |
| Rozhraní | Analog |
| značka panelu | AUO |
| panelový model | A070FW03 V8 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 480(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 154.08×86.58 mm |
| obrys | 164.9×100 mm |
| povrch | Antiglare (Haze 25%) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | Full color |
| Doba odezvy | 12/18 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/40/65 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | TFT Specific Analog RGB, 26 pins |
| vstupní napětí | (3.3/5.0)/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | VDP |
