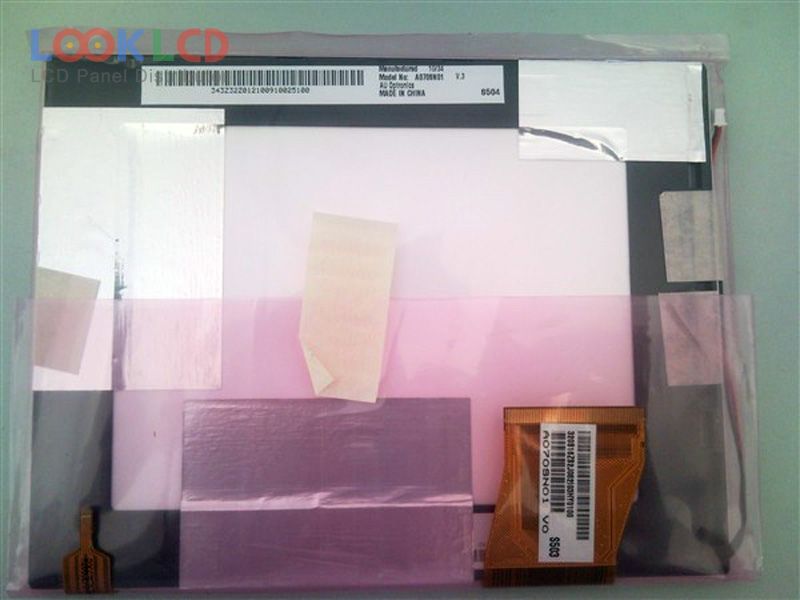

| PartNumber | A070SN01 V3 |
| Značka | AUO |
| Velikost | 7.0 |
| aplikace | DPF |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 200 |
| CR | 500:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | A070SN01 V3 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 141.6×106.2 mm |
| obrys | 154×119.2×6.74 mm |
| povrch | Antiglare (Haze 8%), Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 3/13 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S6PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6/8-bit), 60 pins |
| vstupní napětí | 3.3/11.6/15/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikace | DPF |
