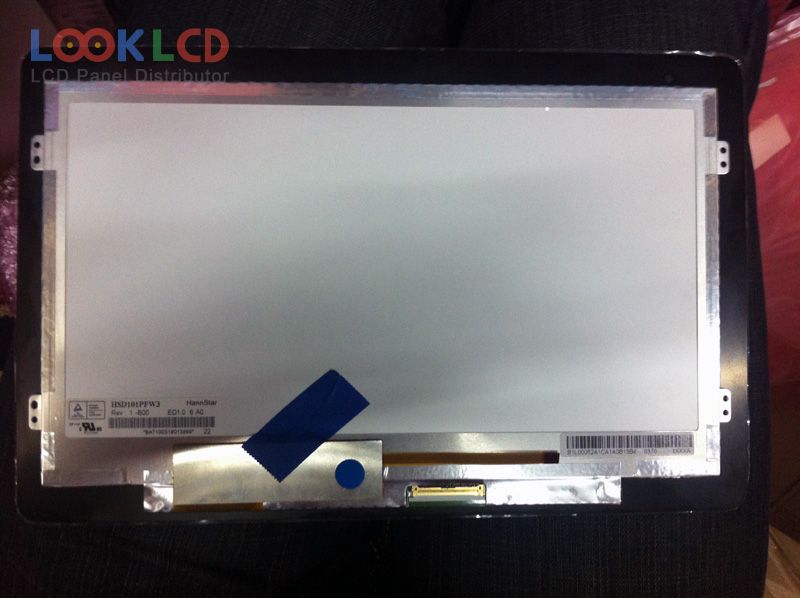

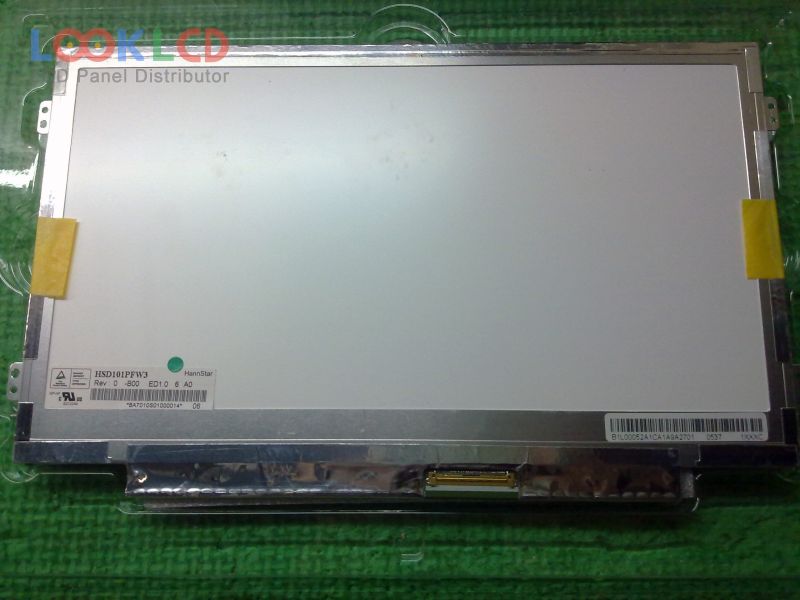

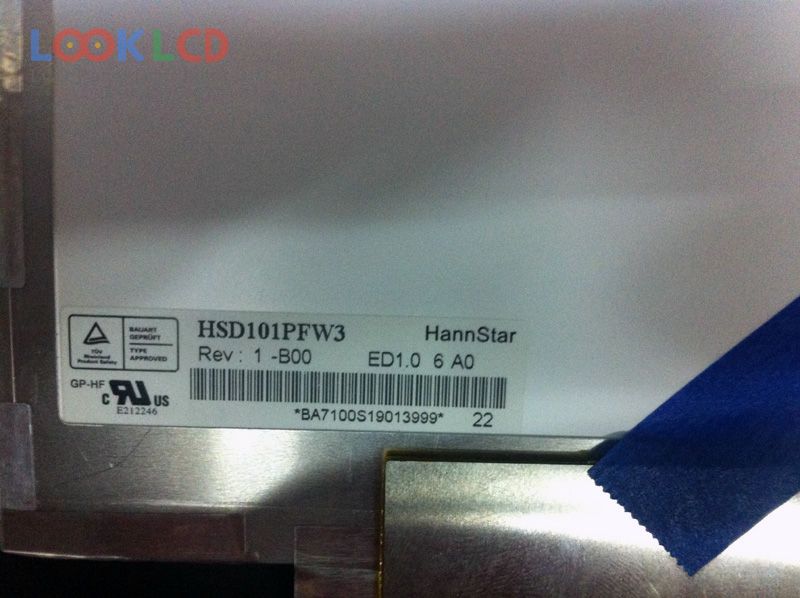

| PartNumber | HSD101PFW3-B00 |
| Značka | HannStar |
| Velikost | 10.1 |
| aplikace | DPF |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 220 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | HannStar |
| panelový model | HSD101PFW3-B00 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 222.72×125.28 mm |
| obrys | 243×146.5×3.6 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193150% |
| Doba odezvy | 4/12 (Typ.)(Tr/Td) |
| úhel pohledu | 80/70/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | DPF |
