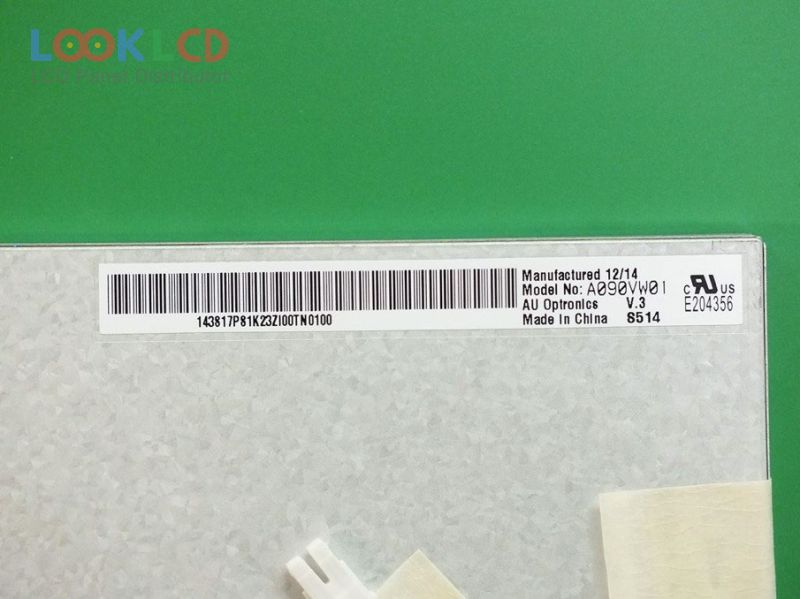

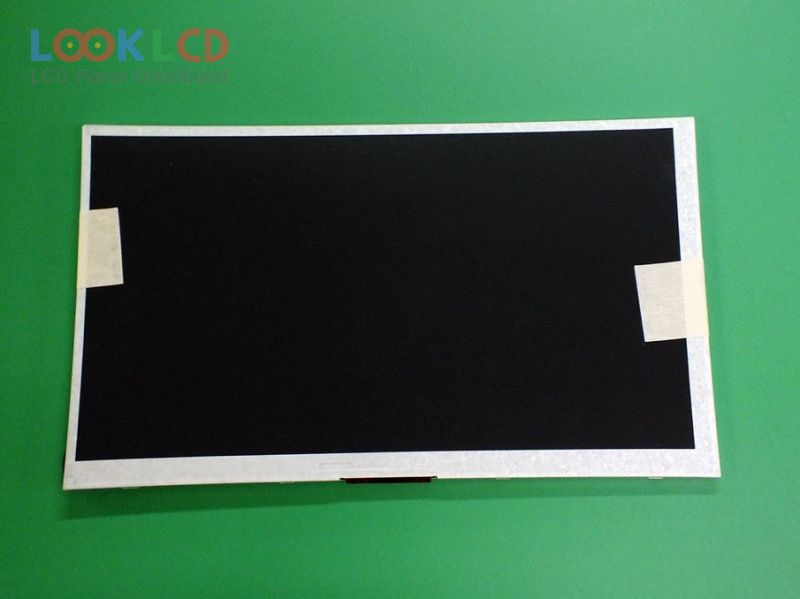

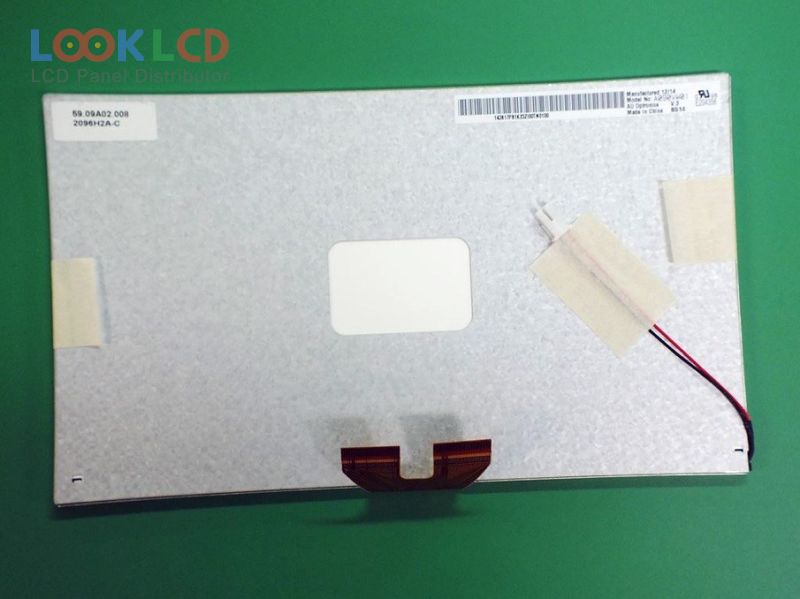

| PartNumber | A090VW01 V3 |
| Značka | AUO |
| Velikost | 9.0 |
| aplikace | DPF |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 250 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | A090VW01 V3 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 9.0 inch |
| rozlišení | 800×480(RGB) , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 199.2×110.16 mm |
| obrys | 211.7×125 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193148% |
| Doba odezvy | 4/12 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/55/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S8PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 8-bit) + SPI, 68 pins |
| vstupní napětí | 3.3/5.5/-5.5/10/-13V (Typ.)(VCC/VDPA/VDNA/VGH/VGL) |
| aplikace | DPF |
