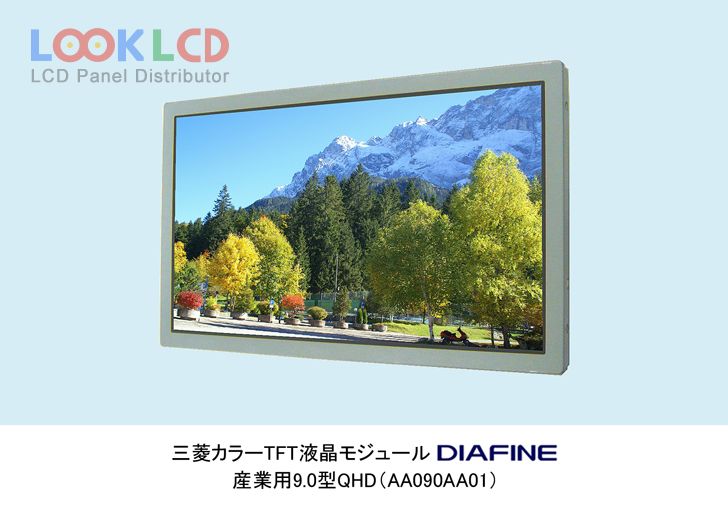

| PartNumber | AA090AA01 |
| Značka | Mitsubishi |
| Velikost | 9.0 |
| aplikace | IA |
| Rozlišení | 960×540 |
| Složení | LCM |
| Jas | 400 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | Mitsubishi |
| panelový model | AA090AA01 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 9.0 inch |
| rozlišení | 960(RGB)×540 , qHD |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 198.72×111.78 mm |
| obrys | 217×130 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 8/8 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
