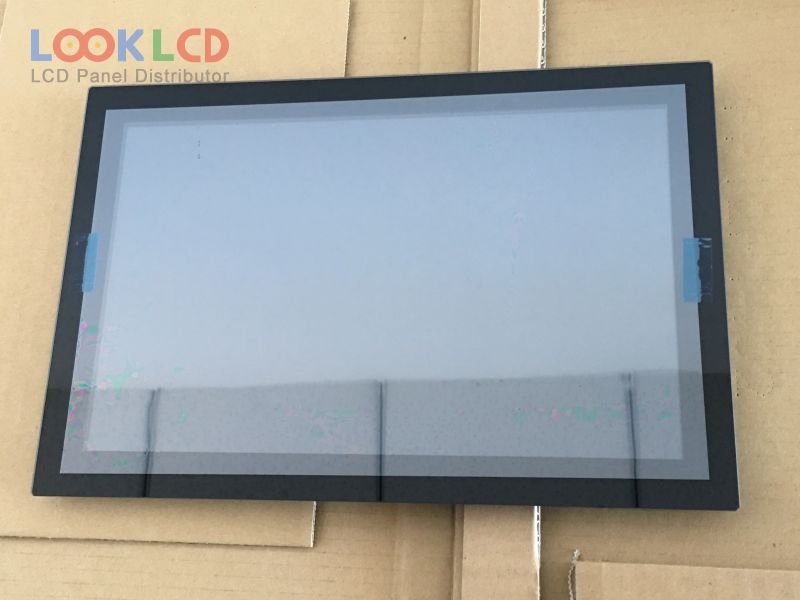

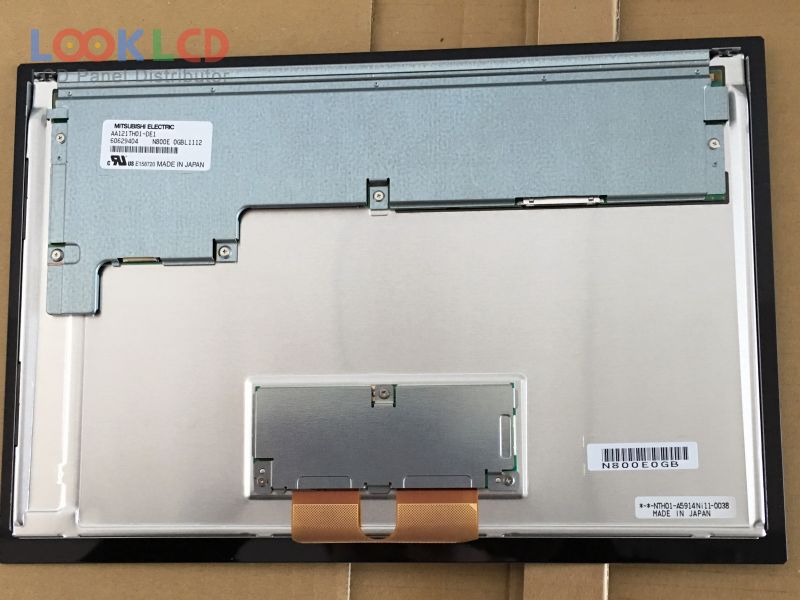

| PartNumber | AA121TH01-DE1 |
| Značka | Mitsubishi |
| Velikost | 12.1 |
| aplikace | IA |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 400 |
| CR | 1000:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | Mitsubishi |
| panelový model | AA121TH01-DE1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 261.12×163.2 mm |
| obrys | 303×205.1×16.3 mm |
| povrch | Clear, Hard coating (5H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 12/12 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
