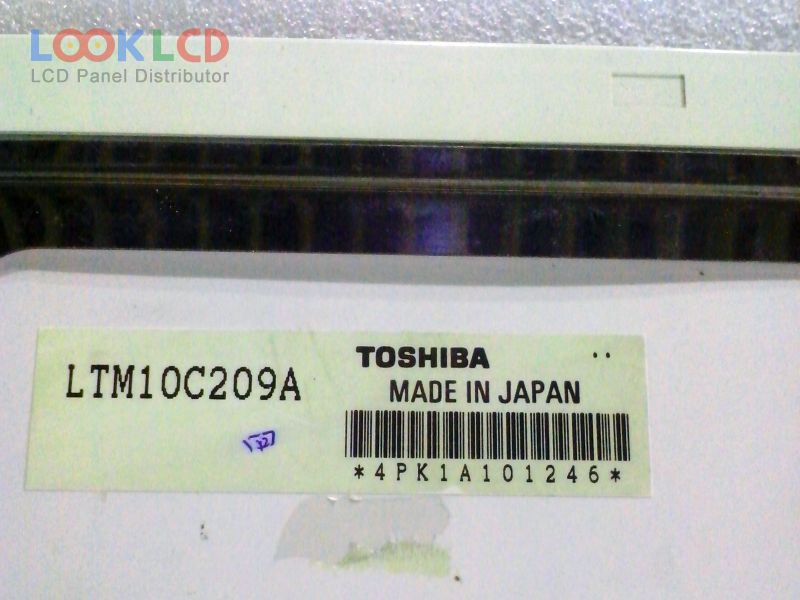

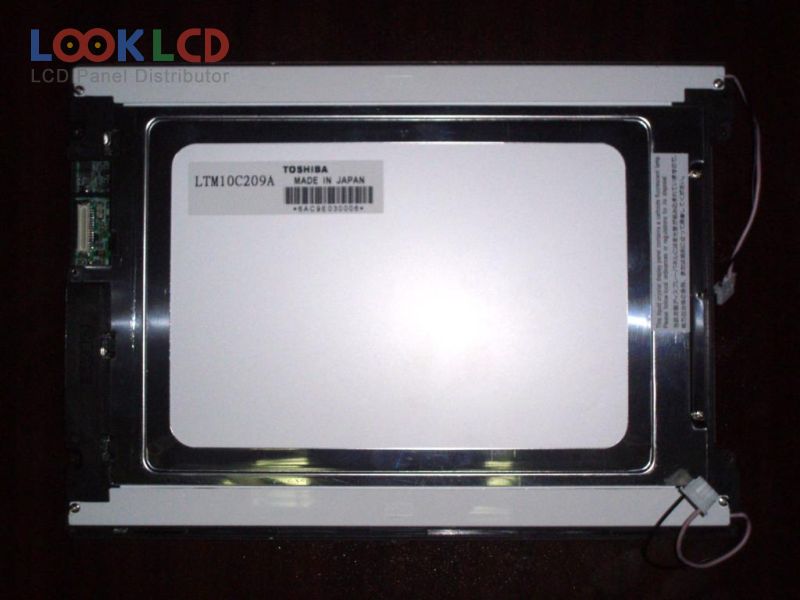

| PartNumber | LTM10C209A |
| Značka | TOSHIBA |
| Velikost | 10.4 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 250 |
| CR | 250:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | TOSHIBA |
| panelový model | LTM10C209A 3 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 211.2×158.4 mm |
| obrys | 265×188.8×12 mm |
| povrch | |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 250:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 50/50 (Max.)(Tr/Td) |
| úhel pohledu | |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 31 pins |
| vstupní napětí | 5.0V (Typ.)(VDD) |
| aplikace | IA |
| LTM104V3-100 | Samsung | 10.4 | 640×480 |
| LTM10C209AF | TOSHIBA | 10.4 | 640×480 |
| LTM10C210 | TOSHIBA | 10.4 | 640×480 |
| LTM10C306Y | TOSHIBA | 10.4 | 1024×768 |
| LTM10C321N | TOSHIBA | 10.4 | 1024×768 |
| LTM10C348F | TOSHIBA | 10.4 | 800×600 |
| LTM10C348P | TOSHIBA | 10.4 | 800×600 |
| LTM10C348S | TOSHIBA | 10.4 | 800×600 |
| LTM10C349 | TOSHIBA | 10.4 | 800×600 |
| LTM10C353 | TOSHIBA | 10.0 | 1280×600 |
| BA104S01-100 | BOE | 10.4 | 800×600 |
| G057VTN01.1 | AUO | 5.7 | 640×480 |
| LM-CJ53-22NAK | SANYO | 10.4 | 640×480 |
| LM8V302H | SHARP | 7.7 | 640×480 |
| LQ057V3LG11 | SHARP | 5.7 | 640×480 |
| M190EG01 V2 | AUO | 19.0 | 1280×1024 |
| OEL9M0065-Y-E | Other | 2.7 | 256×64 |
| SP24V001 | KOE | 9.4 | 640×480 |
| T-51639D084JU-FW-A-AB | Kyocera | 8.4 | 1024×768 |
| TX16D11VM2CCA | KOE | 6.2 | 640×240 |
