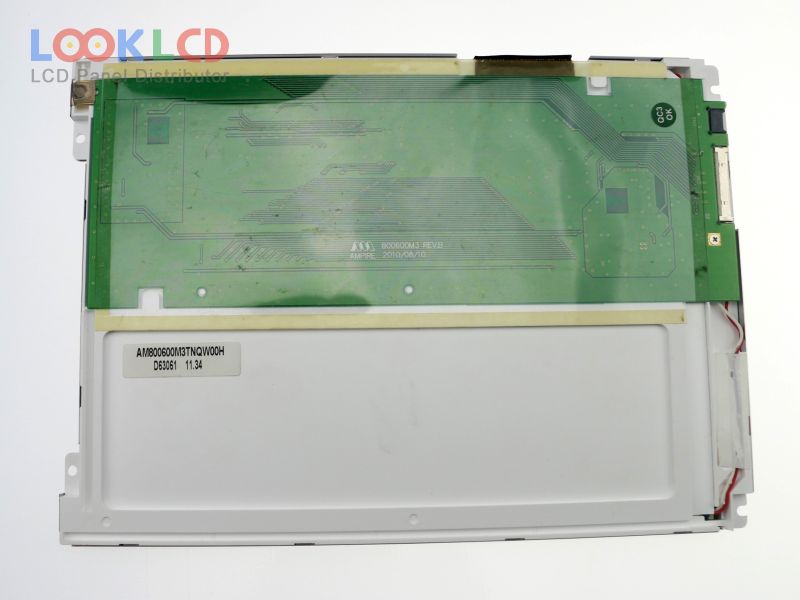

| PartNumber | AM-800600M3TNQW-00H |
| Značka | AMPIRE |
| Velikost | 8.4 |
| aplikace | IA |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 350 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AMPIRE |
| panelový model | AM-800600M3TNQW-00H |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.4 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 170.4×127.8 mm |
| obrys | 203×145.5 mm |
| povrch | |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 8 (Typ.)(Tr+Td) |
| úhel pohledu | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 12S4PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
