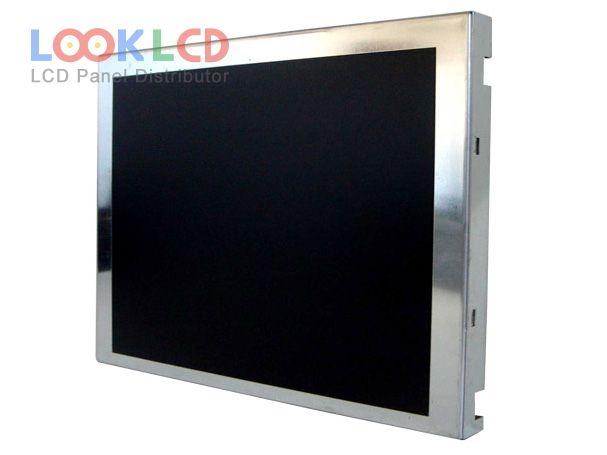

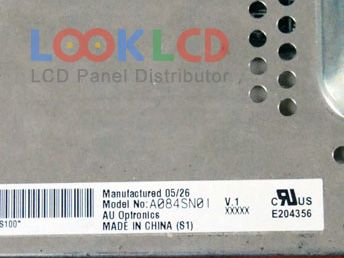

| PartNumber | A084SN01 V1 |
| Značka | AUO |
| Velikost | 8.4 |
| aplikace | GM |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 420 |
| CR | 350:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | AU Optronics |
| panelový model | A084SN01 V1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.4 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 170.4×127.8 mm |
| obrys | 199.8×150 mm |
| povrch | |
| jas | 420 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 10/25 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | CCFLEmbedded (Inverter) |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 36 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | GM |
