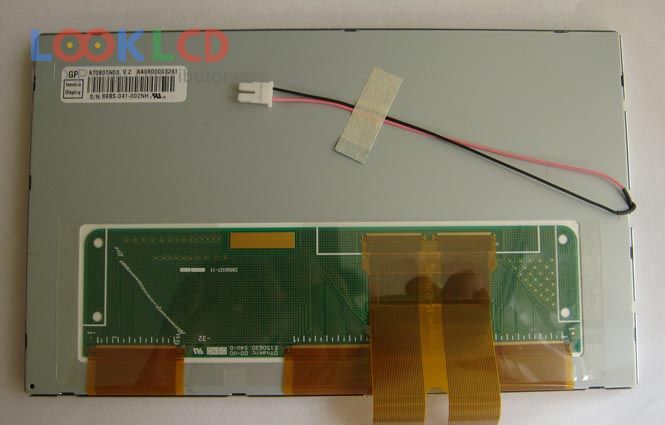

| PartNumber | AT080TN03 V.2 |
| Značka | Innolux |
| Velikost | 8.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 500 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | INNOLUX |
| panelový model | AT080TN03 V.2 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 176.64×99.36 mm |
| obrys | 192.8×116.9 mm |
| povrch | Antiglare |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 15/20 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S12PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 60 pins |
| vstupní napětí | 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| aplikace | CNS |
| AT080TN01 | Innolux | 8.0 | 800×480 |
| AT080TN03 V.1 | Innolux | 8.0 | 800×480 |
| AT080TN03 V.2 | Innolux | 8.0 | 800×480 |
| AT080TN03 V.7 | Innolux | 8.0 | 800×480 |
| AT080TN42 | Innolux | 8.0 | 800×600 |
| AT080TN42 V.1 | Innolux | 8.0 | 800×600 |
| AT080TN43 | Innolux | 8.0 | 800×600 |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| AT080TN52 V.1 | Innolux | 8.0 | 800×600 |
| AT080TN64 | Innolux | 8.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| DLC0700BZG-7 | Other | 7.0 | 800×480 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| L5S30883P00 | SANYO | 4.5 | 480×240 |
| LB070WQ6-TD01 | LG Display | 7.0 | 400×234 |
| LQ042T5DZ11 | SHARP | 4.2 | 480×272 |
| LQ080Y5DZ03 | SHARP | 8.0 | 800×480 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| TM050LDZ00 | Tianma | 5.0 | 240×400 |
| YX-CM043-QN05-56 | 4.3 | 480×272 |
