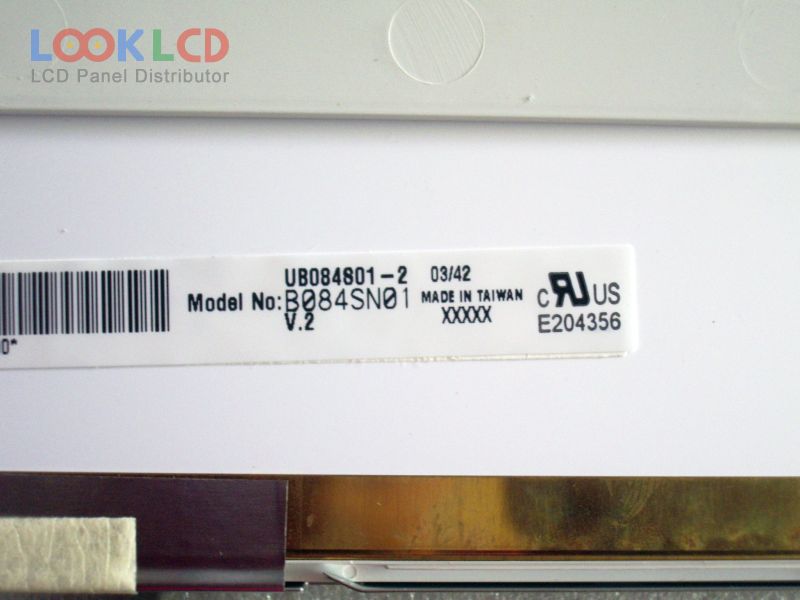

| PartNumber | B084SN01 V2 |
| Značka | AUO |
| Velikost | 8.4 |
| aplikace | IA |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 120 |
| CR | 200:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | AU Optronics |
| panelový model | B084SN01 V2 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.4 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 170.4×127.8 mm |
| obrys | 203×142.5 mm |
| povrch | |
| jas | 120 cd/m² (Typ.) |
| kontrastní poměr | 200:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 20/30 (Typ.)(Tr/Td) |
| úhel pohledu | 40/40/30/10 (Min.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
| AA084VC05 | Mitsubishi | 8.4 | 640×480 |
| B084SN01 V0 | AUO | 8.4 | 800×600 |
| B084SN01 V2 | AUO | 8.4 | 800×600 |
| B084SN02 V0 | AUO | 8.4 | 800×600 |
| B084SN03 V0 | AUO | 8.4 | 800×600 |
| LQ084S3LG01 | SHARP | 8.4 | 800×600 |
| LQ84S02 01A | SHARP | 8.4 | 800×600 |
| LQ9D340 | SHARP | 8.4 | 640×480 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| NL8060BC21-11F | NLT | 8.4 | 800×600 |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| G321EV5B000 | SII | 4.7 | 320×240 |
| KCS057QV1AJ-G20 | Kyocera | 5.7 | 320×240 |
| LM24014H | SHARP | 5.2 | 240×64 |
| LQ150X1LGB1 | SHARP | 15.0 | 1024×768 |
| LQ9D011 | SHARP | 8.4 | 640×480 |
| MAA084DXA03 | Mitsubishi | 8.4 | 1024×768 |
| MD640.400-54 | FINLUX | 9.1 | 640×400 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
| TX18D37VM0ARA | KOE | 7.0 | 800×480 |
