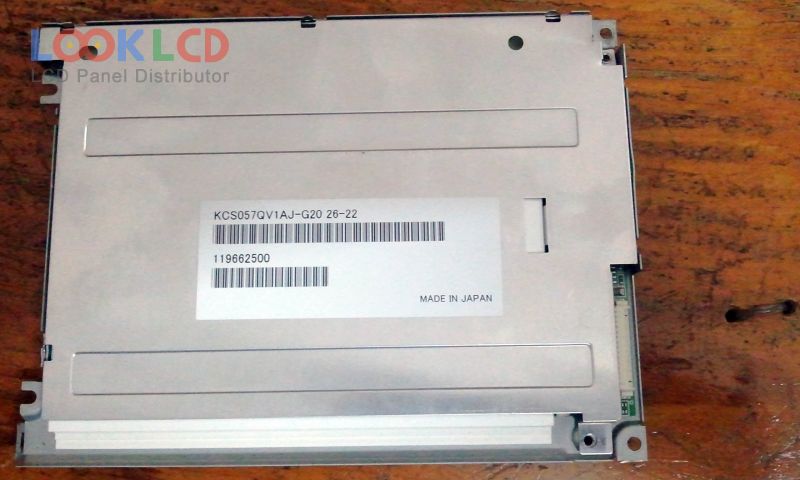

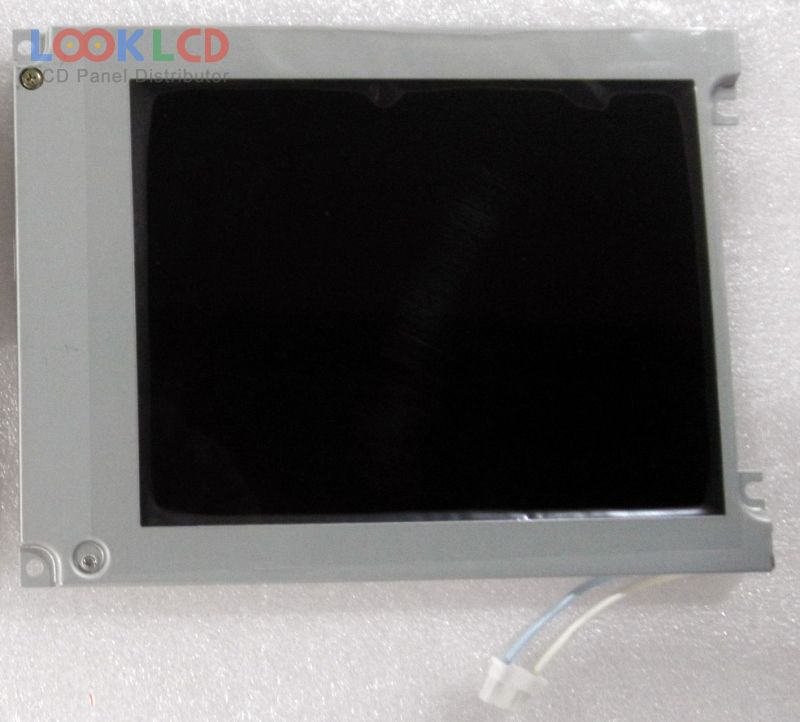

| PartNumber | KCS057QV1AJ-G20 |
| Značka | Kyocera |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 200 |
| CR | 40:1 |
| Barvy | Color |
| Podsvícení | CCFL |
| Rozhraní | Parallel Data |
| značka panelu | Kyocera |
| panelový model | KCS057QV1AJ-G20 |
| typ panelu | CSTN-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | STN, Normally Black, Transmissive |
| aktivní oblast | 115.2×86.4 mm |
| obrys | 154.6×114.8×9 mm |
| povrch | Glare (Haze 0%) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 40:1 (Typ.) |
| zobrazit barvy | Color |
| Doba odezvy | 220/110 (Typ.)(Tr/Td) |
| úhel pohledu | 50/50/30/30 (Typ.)(CR≥2)(L/R/U/D) |
| frekvence | 75Hz |
| typ lampy | 1 pcsCCFLOptional |
| signálové rozhraní | Parallel Data (8-bit), 15 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | IA |
