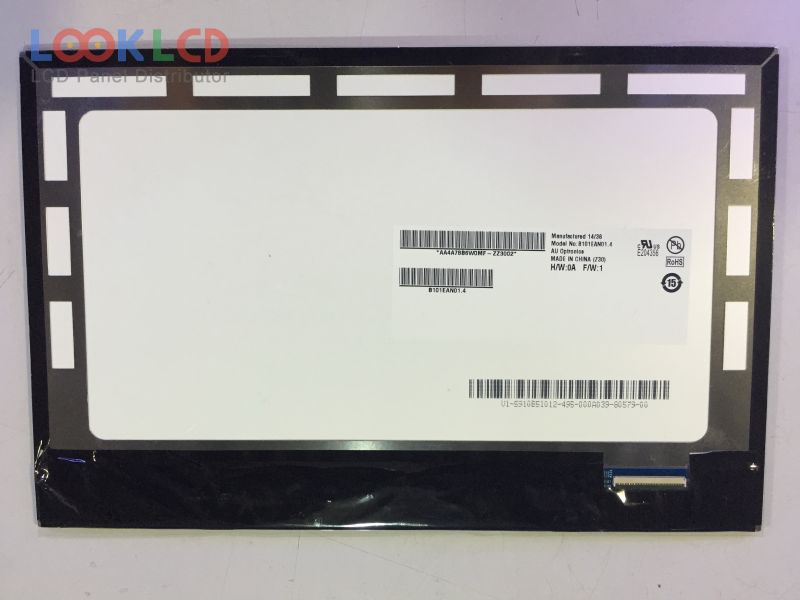

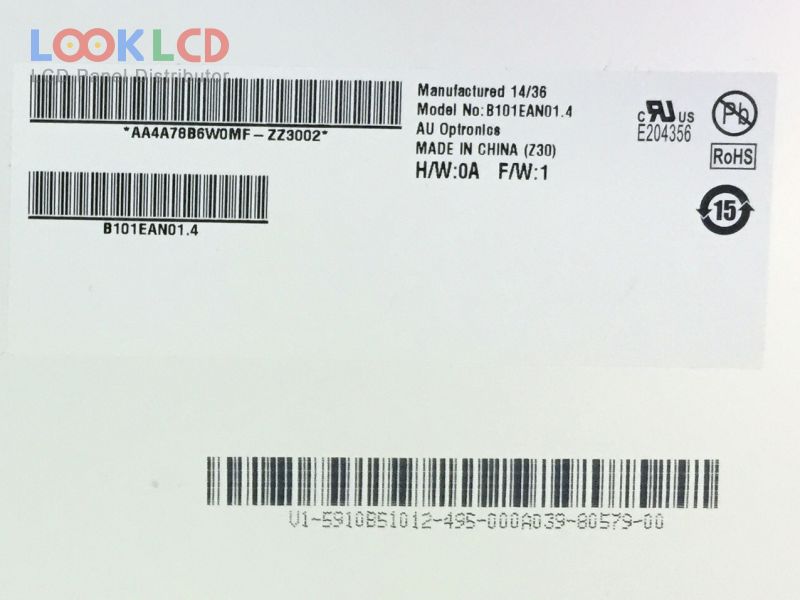

| PartNumber | B101EAN01.4 |
| Značka | AUO |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 350 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | B101EAN01.4 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | AHVA, Normally Black, Transmissive |
| aktivní oblast | 216.96×135.6 mm |
| obrys | 227.9×147.8×4.6 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S5PWLEDEmbedded (LED Driver) |

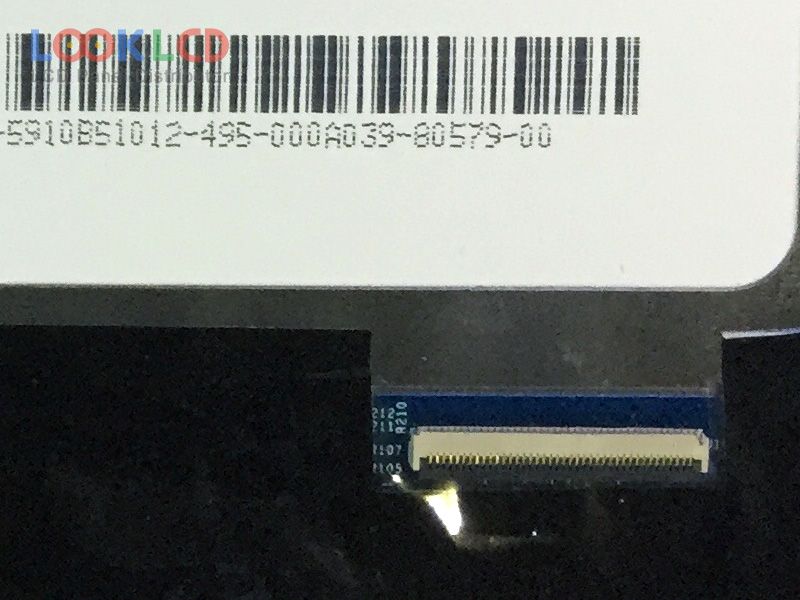

| signálové rozhraní | LVDS (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
