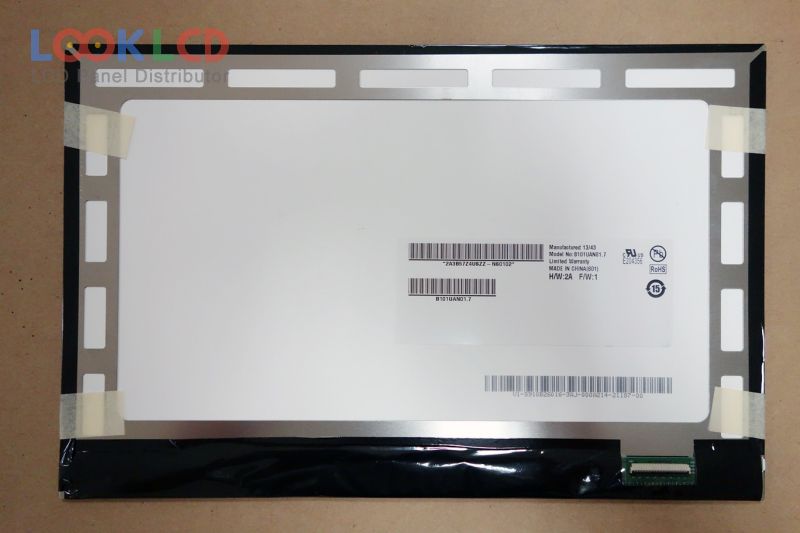

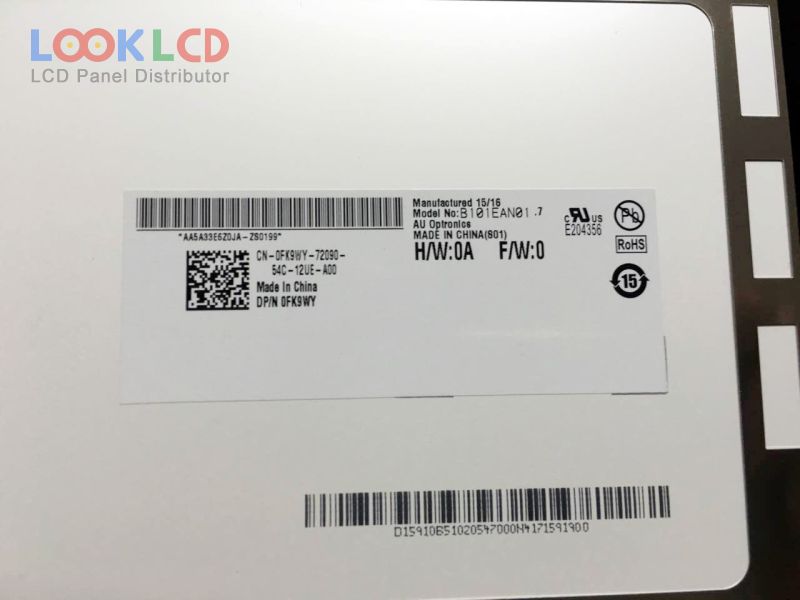

| PartNumber | B101EAN01.7 |
| Značka | AUO |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 400 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | AUO |
| panelový model | B101EAN01.7 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | AHVA, Normally Black, Transmissive |
| aktivní oblast | 216.96×135.6 mm |
| obrys | 227.9×147.8×4.6 mm |
| povrch | Glare (Haze 0%) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S4PWLEDEmbedded (LED Driver) |
| signálové rozhraní | MIPI (4 data lanes), 34 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| B101EAN01.2 | AUO | 10.1 | 1280×800 |
| B101EAN01.4 | AUO | 10.1 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| B101EVN06.1 | AUO | 10.1 | 1280×800 |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| B101EW01 V0 | AUO | 10.1 | 1280×720 |
| B101EW02 V0 | AUO | 10.1 | 1280×720 |
| B101EW02 V1 | AUO | 10.1 | 1280×720 |
| B101EW04 V0 | AUO | 10.1 | 1280×800 |
| B080XAN03.0 | AUO | 7.9 | 768×1024 |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| LQ079L1SX01 | SHARP | 7.9 | 1536×2048 |
| LT121DKXBF00 | TOSHIBA | 12.1 | 1280×800 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
| N070ICE-GB1 | Innolux | 7.0 | 800×1280 |
| TPF0702001N | JDI | 7.0 | 1200×1920 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
