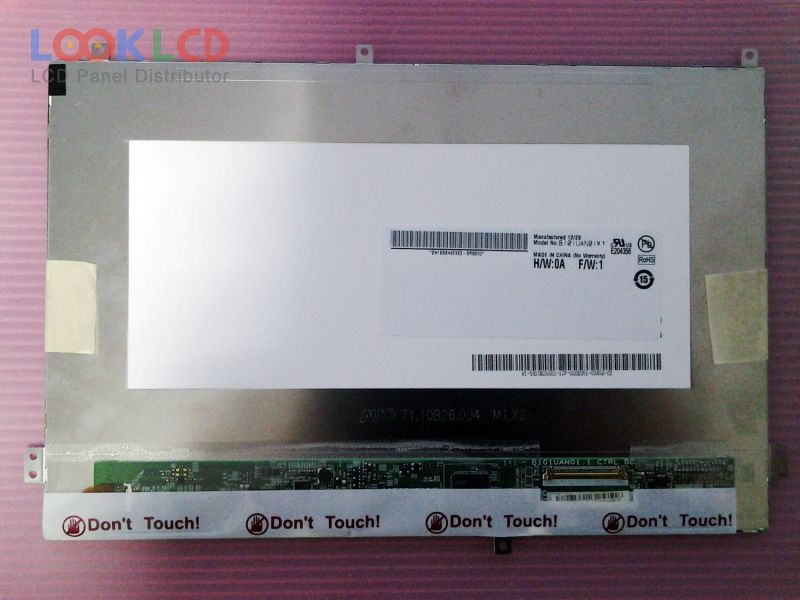

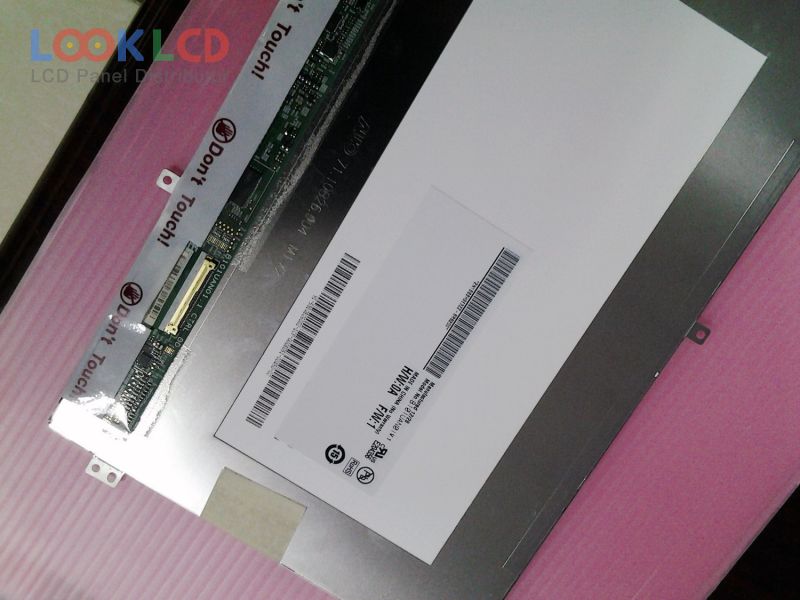

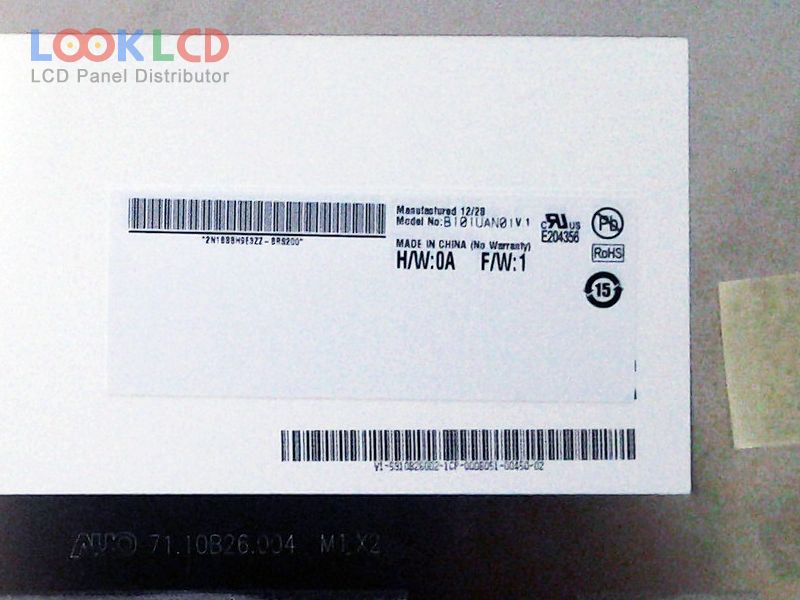

| PartNumber | B101UAN01.1 |
| Značka | AUO |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1920×1200 |
| Složení | LCM |
| Jas | 400 |
| CR | 800:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AU Optronics |
| panelový model | B101UAN01.1 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1920(RGB)×1200 , WUXGA |
| zobrazovací mód | AHVA, Normally Black, Transmissive |
| aktivní oblast | 216.81×135.5 mm |
| obrys | 228.6×149.2×4.65 mm |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193152% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5 stringsWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
