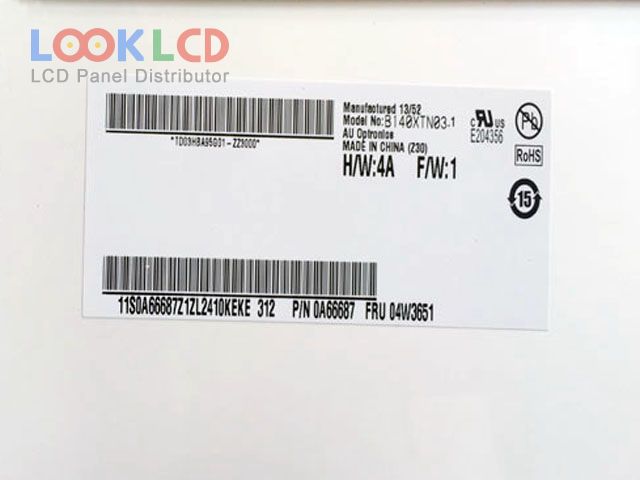

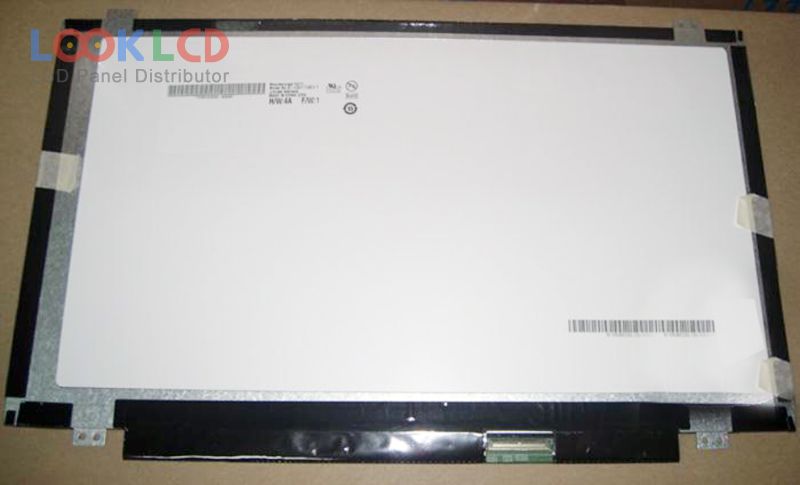

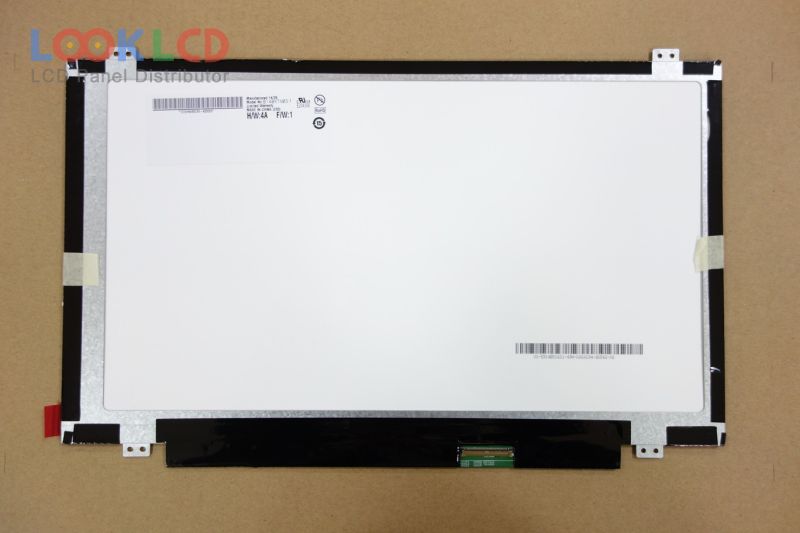

| PartNumber | B140XTN03.1 |
| Značka | AUO |
| Velikost | 14.0 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 200 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | B140XTN03.1 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 14.0 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 309.399×173.952 mm |
| obrys | 320.4×205.1×3.6 mm |
| tvarový styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Antiglare, Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 2/6 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| B140XTN02.0 | AUO | 14.0 | 1366×768 |
| B140XTN02.3 | AUO | 14.0 | 1366×768 |
| B140XTN02.4 | AUO | 14.0 | 1366×768 |
| B140XTN03.2 | AUO | 14.0 | 1366×768 |
| B140XTN03.9 | AUO | 14.0 | 1366×768 |
| B140XW01 V4 | AUO | 14.0 | 1366×768 |
| B140XW01 V8 | AUO | 14.0 | 1366×768 |
| B140XW01 V9 | AUO | 14.0 | 1366×768 |
| B140XW02 V1 | AUO | 14.0 | 1366×768 |
| B140XW02 V2 | AUO | 14.0 | 1366×768 |
| B116XTK01.1 | AUO | 11.6 | 1366×768 |
| B141EW03 V3 | AUO | 14.1 | 1280×800 |
| B154EW02 V1 | AUO | 15.4 | 1280×800 |
| B156XTT01.0 | AUO | 15.6 | 1366×768 |
| LP133WQ1-SJEV | LG Display | 13.3 | 2560×1600 |
| LP140WH4-TLD1 | LG Display | 14.0 | 1366×768 |
| LTD121EA3P | TOSHIBA | 12.1 | 1024×768 |
| LTN150KT02-801 | Samsung | 15.0 | 1600×900 |
| LTN170WU-L02 | Samsung | 17.0 | 1920×1200 |
| LTN184KT01-F01 | Samsung | 18.4 | 1680×945 |
