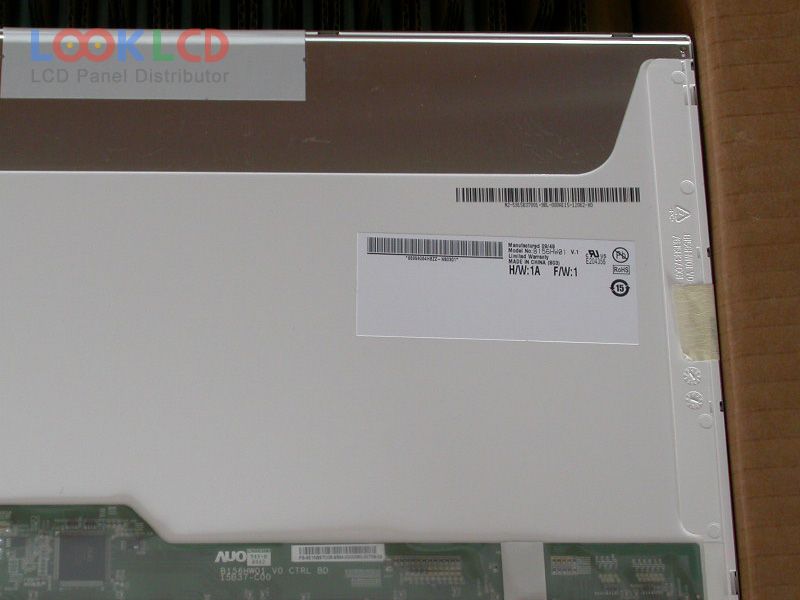

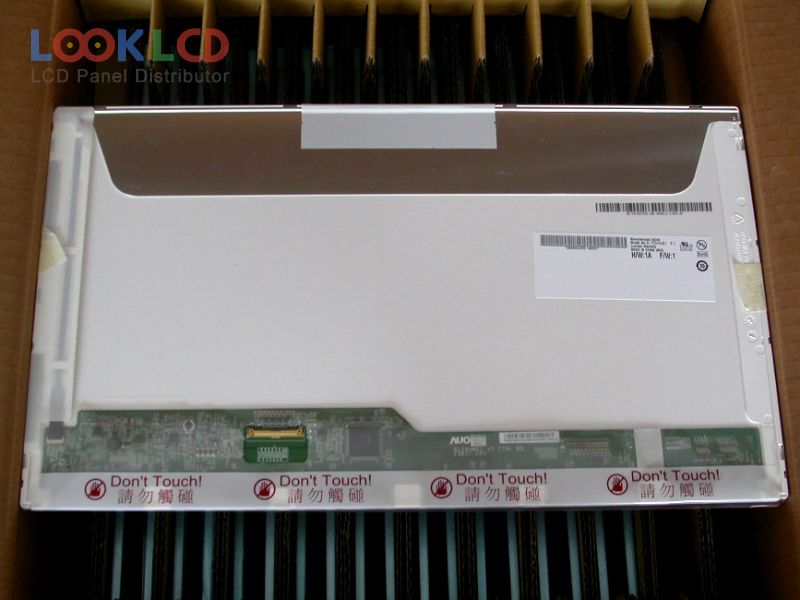

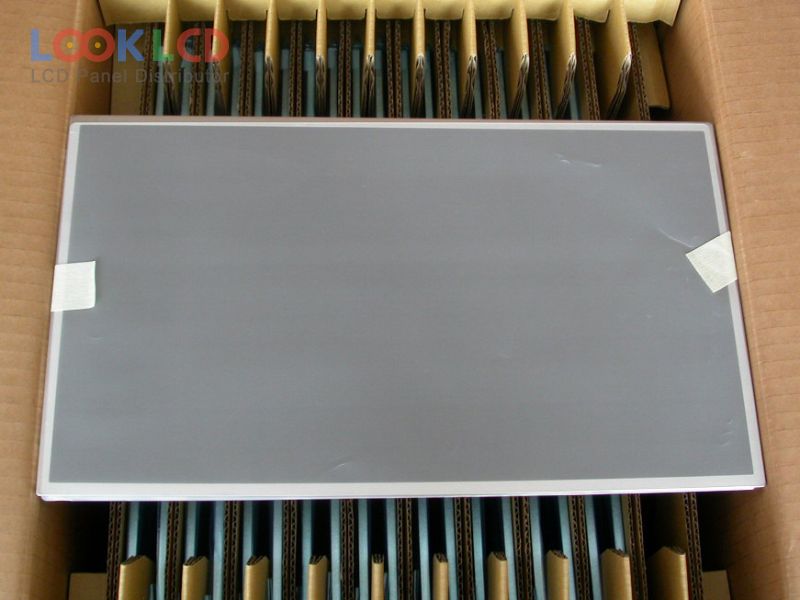

| PartNumber | B156HW01 V1 |
| Značka | AUO |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 300 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | B156HW01 V1 20 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.16×193.59 mm |
| obrys | 359.3×209.5×5.7 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Antiglare |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193160% |
| Doba odezvy | 2/6 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| B156HAT01.0 | AUO | 15.6 | 1920×1080 |
| B156HB01 V0 | AUO | 15.6 | 1920×1080 |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| B156HTN01.1 | AUO | 15.6 | 1920×1080 |
| B156HW01 V0 | AUO | 15.6 | 1920×1080 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156HW01 V3 | AUO | 15.6 | 1920×1080 |
| B156HW01 V4 | AUO | 15.6 | 1920×1080 |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
| B156HW03 V0 | AUO | 15.6 | 1920×1080 |
| B121EW03 V7 | AUO | 12.1 | 1280×800 |
| B140RW02 V2 | AUO | 14.0 | 1600×900 |
| B141EW05 V0 | AUO | 14.1 | 1280×800 |
| LQ150F1LW14C | SHARP | 15.0 | 1400×1050 |
| LTN121W1-L03 | Samsung | 12.1 | 1280×800 |
| LTN141W1-L02 | Samsung | 14.1 | 1280×800 |
| LTN156AT29-L01 | Samsung | 15.6 | 1366×768 |
| N121I2-L01 | Innolux | 12.1 | 1280×800 |
| N140BGE-L41 | Innolux | 14.0 | 1366×768 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
