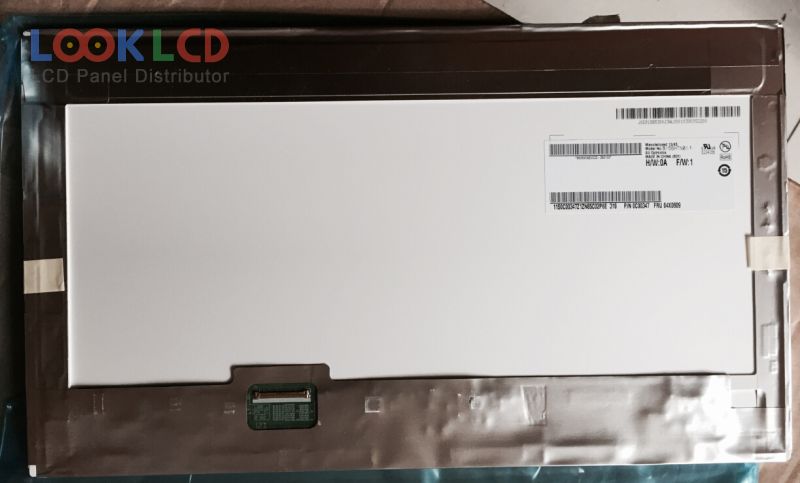

| PartNumber | B156HTN01.1 |
| Značka | AUO |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 270 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | B156HTN01.1 20 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.16×193.59 mm |
| obrys | 359.3×209.5×5.8 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Antiglare (Haze 42%), Hard coating (2H), Reflection 3.0% (Max.) |
| jas | 270 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193195% |
| Doba odezvy | 8 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
