| PartNumber | C070VAN01.3 |
| Značka | AUO |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | |
| značka panelu | AUO |

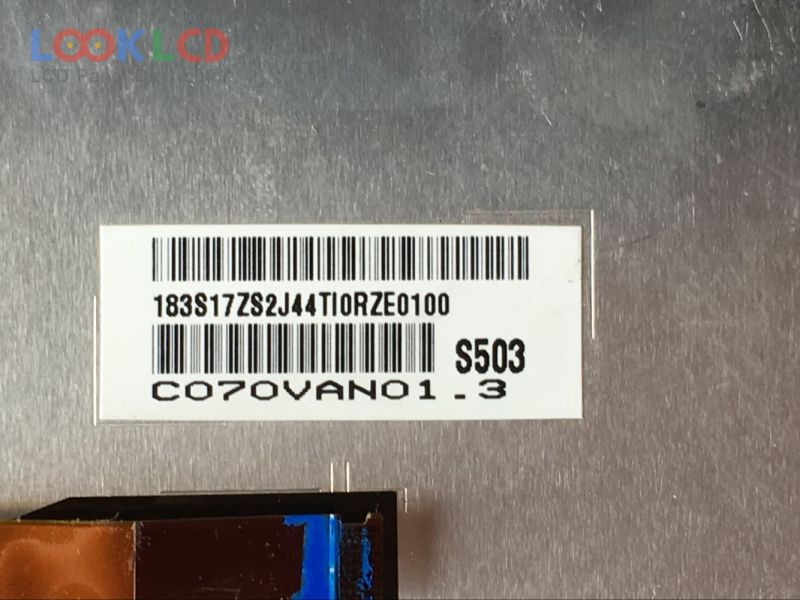

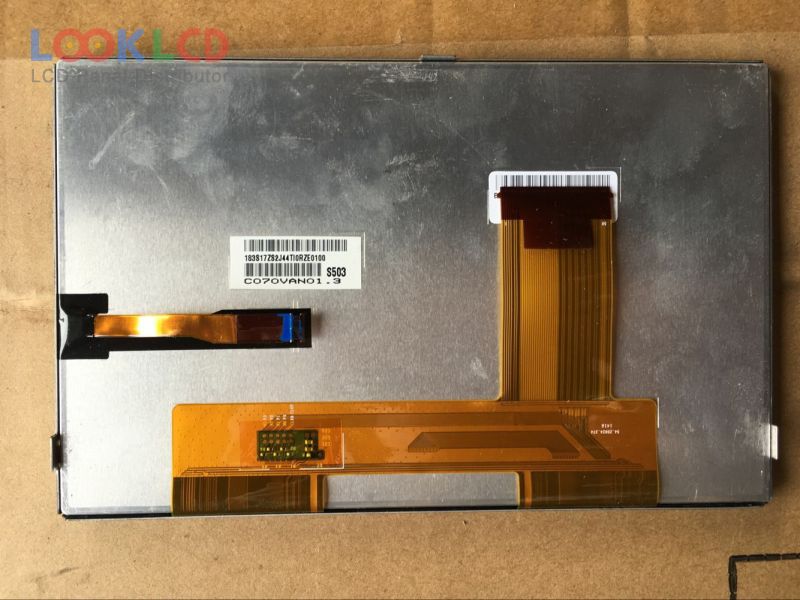

| panelový model | C070VAN01.3 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | AHVA, Normally Black, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLED |
| aplikace | CNS |
