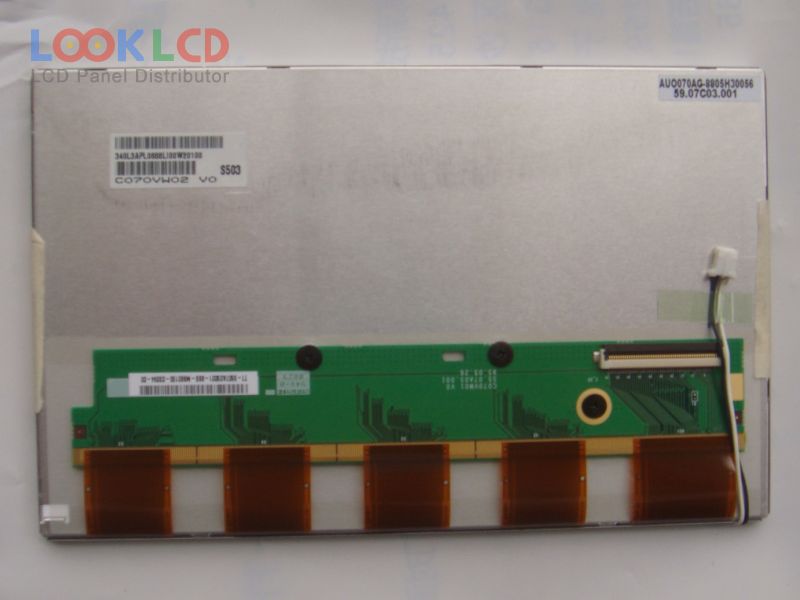

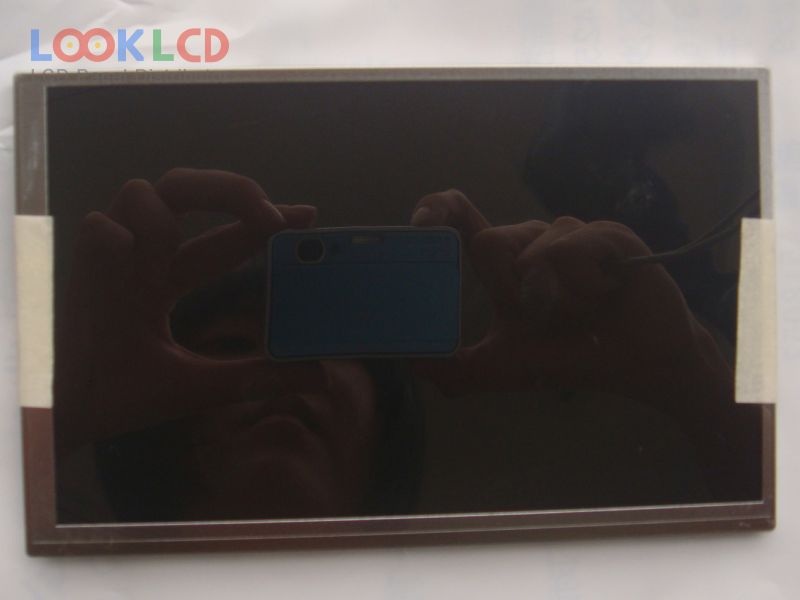

| PartNumber | C070VW02 V0 |
| Značka | AUO |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 400 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | C070VW02 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 165×104×9.45 mm |
| povrch | Antiglare (Haze 5%) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 6/10 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 50 pins |
| vstupní napětí | 3.3/9.8/15/-7/4.2V (Typ.)(VCC/AVDD/VGH/VGL/VCOM) |
| aplikace | CNS |
