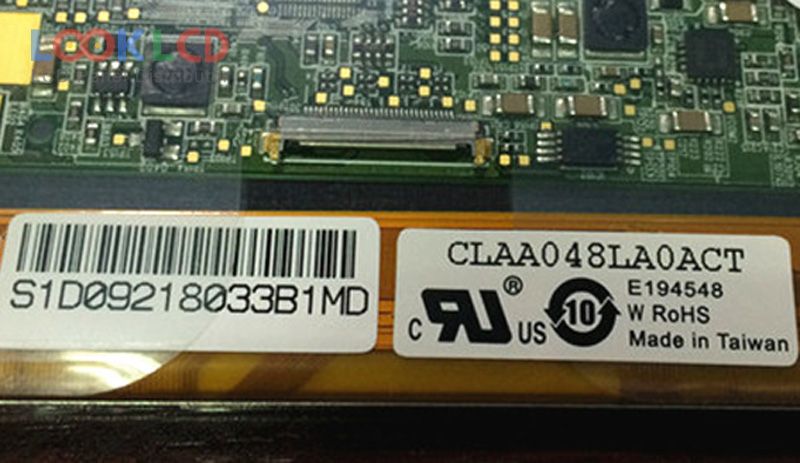

| PartNumber | CLAA048LA0ACT |
| Značka | CPT |
| Velikost | 4.8 |
| aplikace | |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 280 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CPT |
| panelový model | CLAA048LA0ACT |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.8 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 103.8×62.28 mm |
| obrys | 114.65×74.7 mm |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 280 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193148% |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
