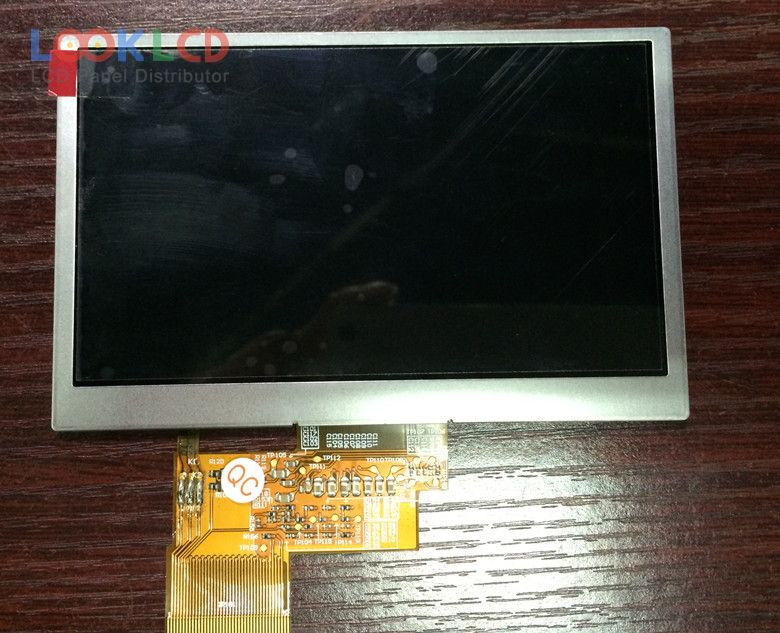

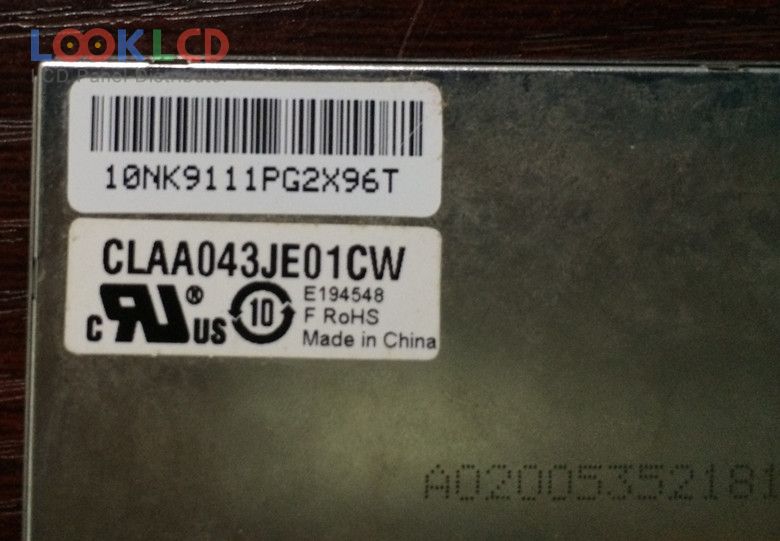

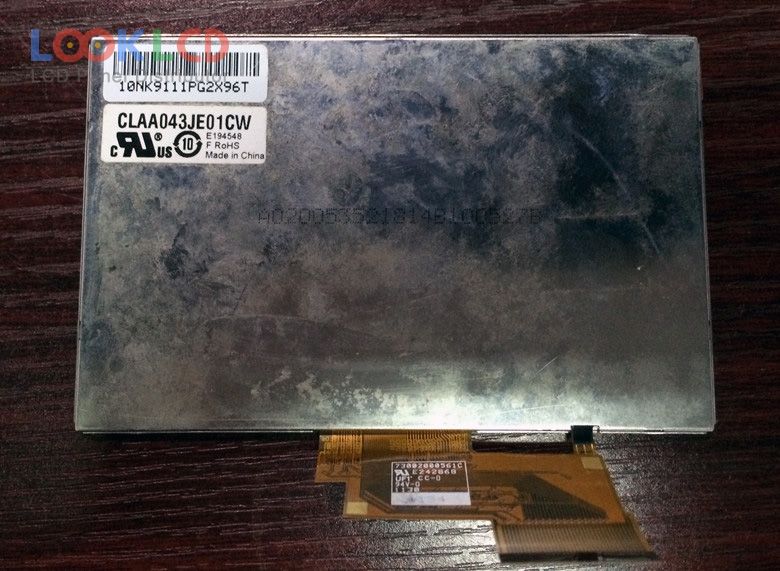

| PartNumber | CLAA043JE01CW |
| Značka | CPT |
| Velikost | 4.3 |
| aplikace | CNS |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 600 |
| CR | 500:1 |
| Barvy | 16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | CPT |
| panelový model | CLAA043JE01CW |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480(RGB)×272 , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 95.04×53.856 mm |
| obrys | 105.5×67.2×3 mm |
| povrch | Antiglare |
| jas | 600 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC) |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S2PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | CNS |
| CLAA043JE01CW | CPT | 4.3 | 480×272 |
| CLAA048LA0ACT | CPT | 4.8 | 800×480 |
| CLAA048LA0BCW | CPT | 4.8 | 800×480 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| LH430WV3-SH02 | LG Display | 4.3 | 480×800 |
| LMS430HF11 | Samsung | 4.3 | 480×272 |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| AT080TN64 | Innolux | 8.0 | 800×480 |
| C061FW01 V0 | AUO | 6.1 | 480×234 |
| C065GW04 V2 | AUO | 6.5 | 400×240 |
| CLAA070NJ05CW | CPT | 7.0 | 1024×600 |
| DD070NA-02A | Innolux | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| LA070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LQ6BW506 | SHARP | 5.8 | 400×234 |
| PM070WT2 | E Ink | 7.0 | 800×480 |
| PW065XS1 | E Ink | 6.5 | 400×234 |
