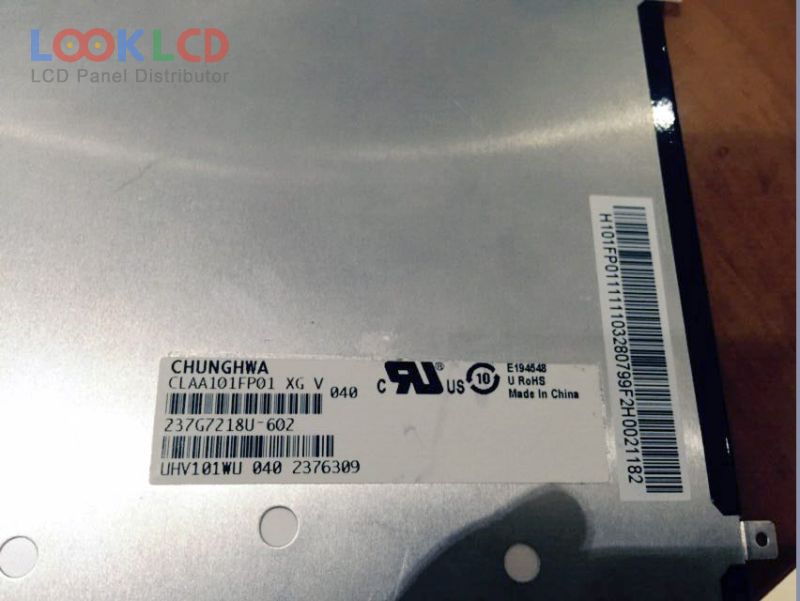

| PartNumber | CLAA101FP01 XG |
| Značka | CPT |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1920×1200 |
| Složení | LCM |
| Jas | 700 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | CPT |
| panelový model | CLAA101FP01 XG |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1920(RGB)×1200 , WUXGA |
| zobrazovací mód | HFFS, Normally Black, Transmissive |
| aktivní oblast | 216.576×135.36 mm |
| obrys | 229×153×4.8 mm |
| povrch | Glare (Haze 0%), Hard coating, Antireflection |
| jas | 700 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | MIPI (4 data lanes), 45 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
