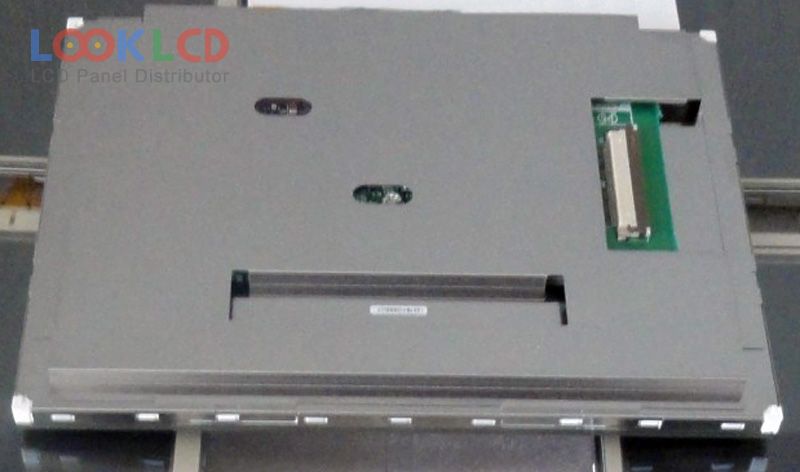

| PartNumber | COM57H5M10XRC |
| Značka | ORTUSTECH |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 360 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | ORTUSTECH |
| panelový model | COM57H5M10XRC |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transflective |
| aktivní oblast | 115.2×86.4 mm |
| obrys | 130.32×101.2 mm |
| povrch | |
| jas | 360 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 40/60 (Max.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
