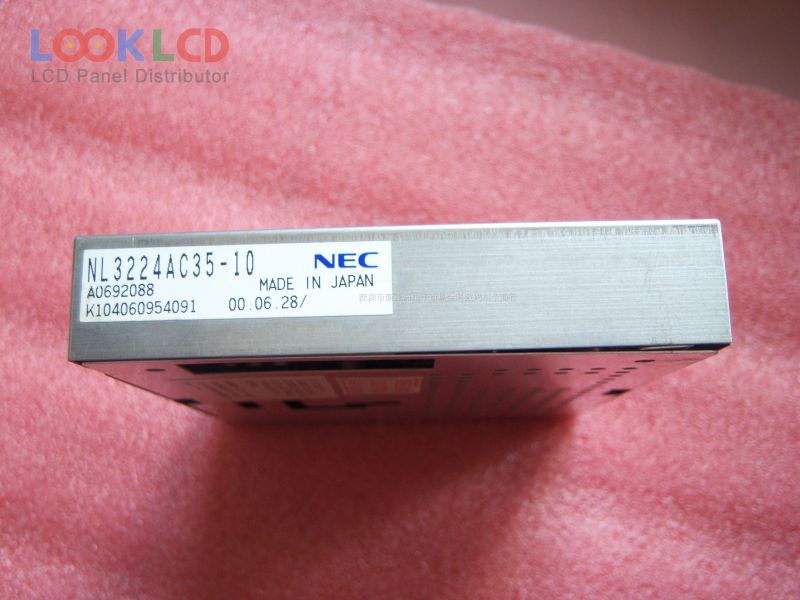

| PartNumber | NL3224AC35-10 |
| Značka | NLT |
| Velikost | 5.5 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 250 |
| CR | 85:1 |
| Barvy | Full color |
| Podsvícení | CCFL |
| Rozhraní | Analog |
| značka panelu | NEC |
| panelový model | NL3224AC35-10 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.5 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 111.36×83.52 mm |
| obrys | 134×110 mm |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 85:1 (Typ.) |
| zobrazit barvy | Full color , CIE193150% |
| Doba odezvy | 16/44 (Typ.)(Tr/Td) |
| úhel pohledu | 50/50/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLEmbedded (Inverter) |
| signálové rozhraní | Analog RGB, 24 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | IA |
