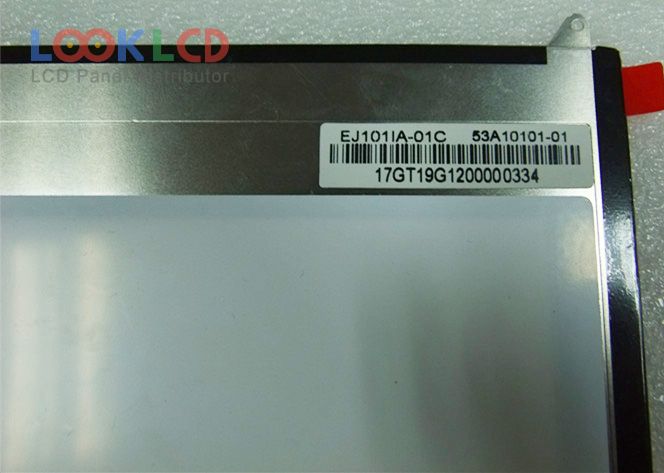

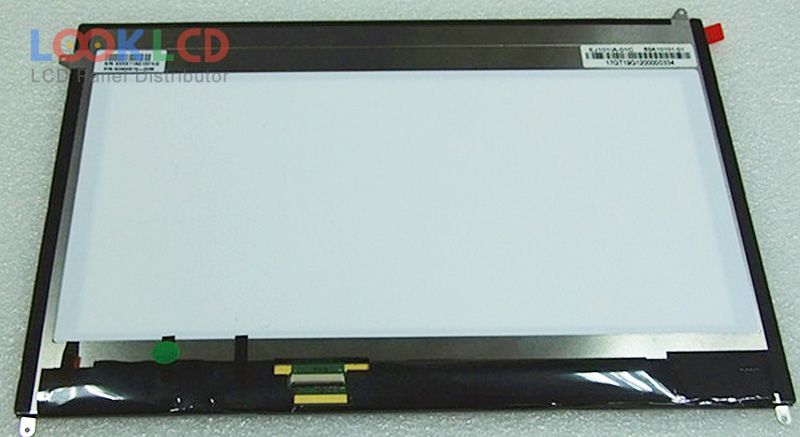

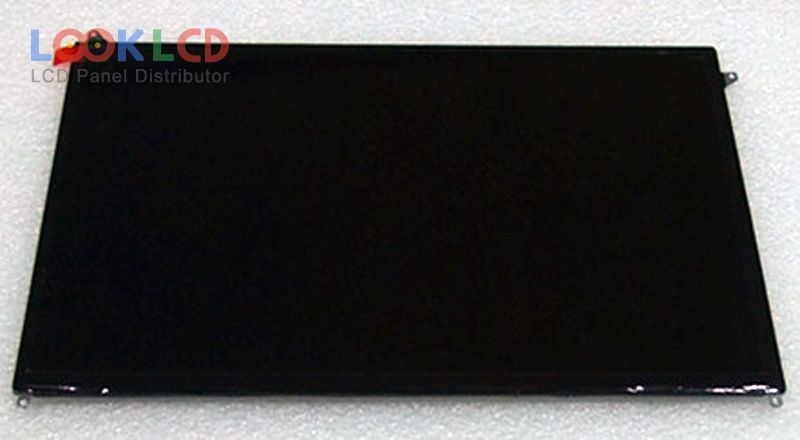

| PartNumber | EJ101IA-01C |
| Značka | Innolux |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 400 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | EJ101IA-01C |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 216.96×135.6 mm |
| obrys | 228.96×148.5×4.6 mm |
| povrch | Hard coating, Antireflection |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 10/15 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S6PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 45 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
