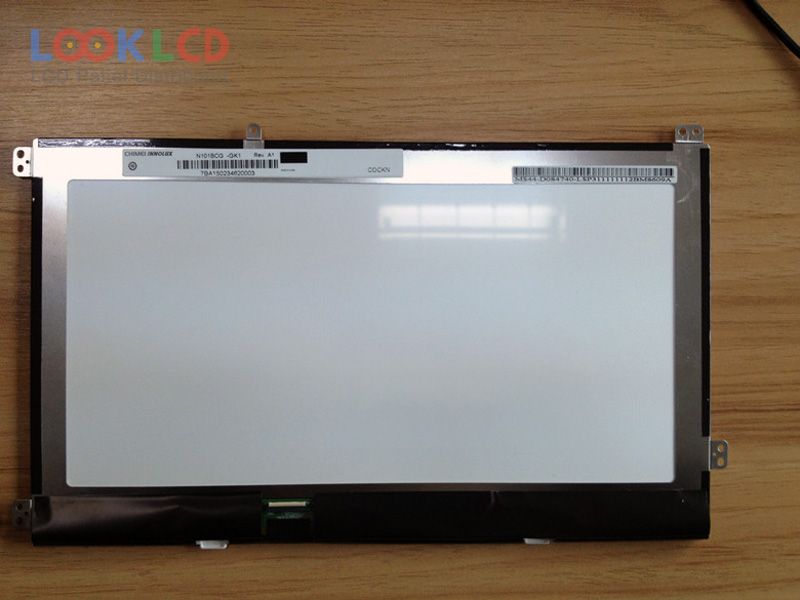

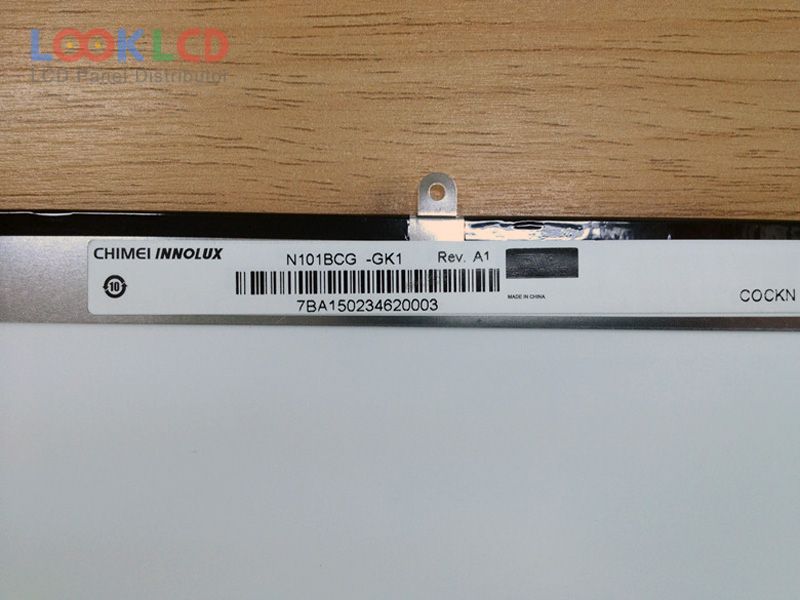

| PartNumber | N101BCG-GK1 |
| Značka | Innolux |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 400 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | INNOLUX |
| panelový model | N101BCG-GK1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 222.52×125.11 mm |
| obrys | 234.93×139.17×4.3 mm |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 14/11 (Typ.)(Tr/Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S6PWLEDWithout Driver |

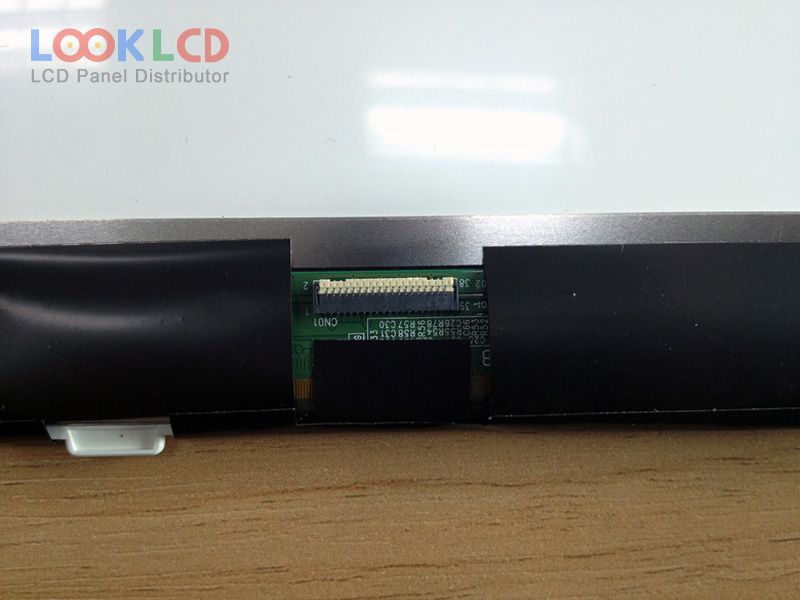

| signálové rozhraní | MIPI (4 data lanes), 39 pins |
| vstupní napětí | 3.3/1.2V (Typ.)(VDD/Core_VDD) |
| aplikace | PAD |
