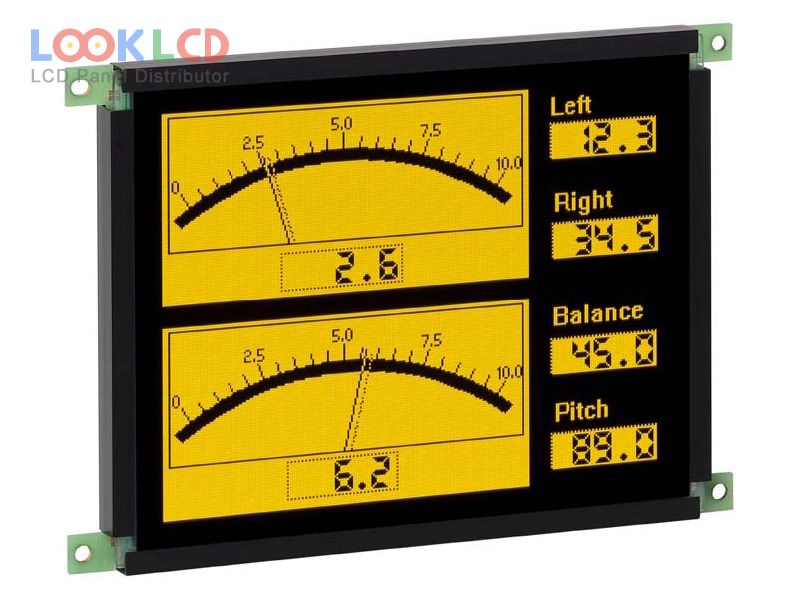

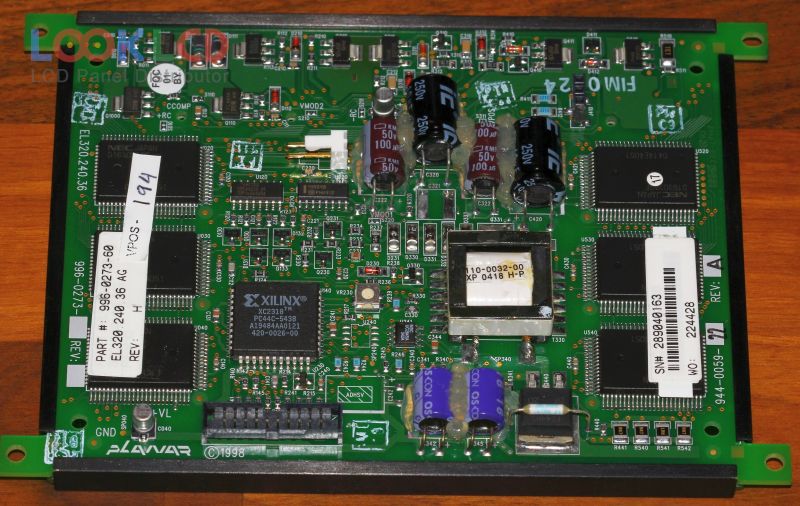

| PartNumber | EL320.240.36 AG |
| Značka | Lumineq |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | EL |
| Jas | 50 |
| CR | 50:1 |
| Barvy | Mono(Yellow) |
| Podsvícení | self |
| Rozhraní | Parallel Data |
| značka panelu | Lumineq |
| panelový model | EL320.240.36 AG |
| typ panelu | EL , EL |
| velikost panelu | 5.7 inch |
| rozlišení | 320×240 , QVGA |
| aktivní oblast | 115.1×86.3 mm |
| obrys | 148.1×104.7 mm |
| povrch | Antiglare |
| jas | 50 cd/m² (Typ.) |
| kontrastní poměr | 50 : 1 (Typ.) |
| zobrazit barvy | Mono(Yellow) (1-bit) |
| úhel pohledu | 89/89/89/89 (Typ.)(L/R/U/D) |
| frekvence | 120Hz |
| signálové rozhraní | Parallel Data (1ch, 4-bit), 20 pins |
| vstupní napětí | 5/12V (Typ.)(VL/VH) |
| aplikace | IA |
