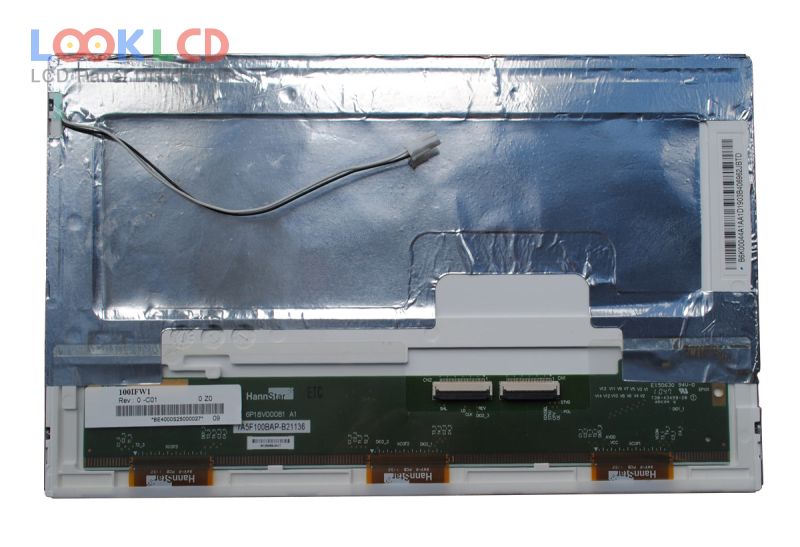

| PartNumber | HSD100IFW1-C01 |
| Značka | HannStar |
| Velikost | 10.1 |
| aplikace | DPF |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 250 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | HannStar |
| panelový model | HSD100IFW1-C01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 220.416×129.15 mm |
| obrys | 235×145.8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193147% |
| Doba odezvy | 5/20 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S10PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6-bit), 60 pins |
| vstupní napětí | 3.3/9.48/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | DPF |
