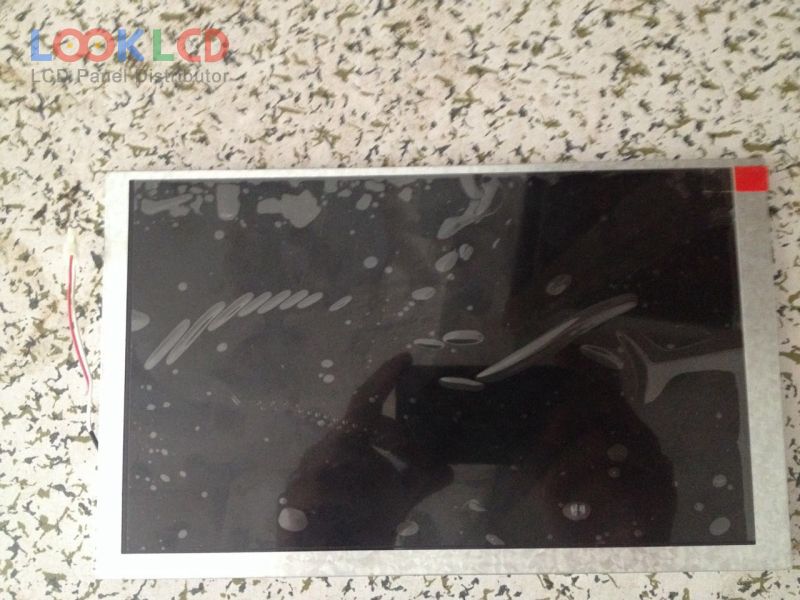

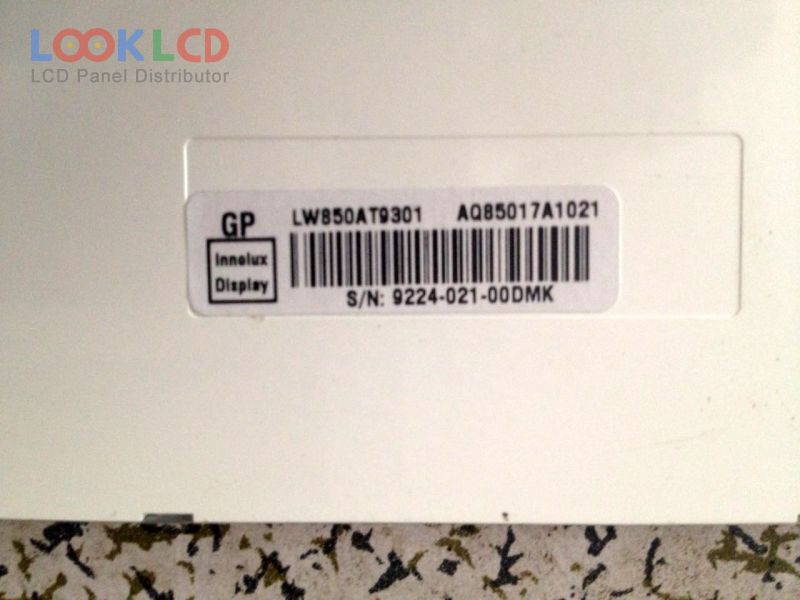

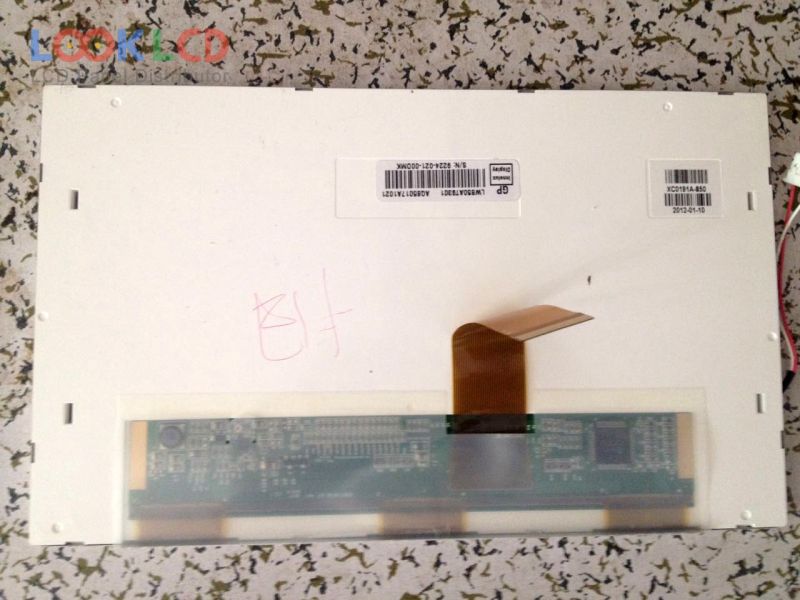

| PartNumber | LW850AT9301 |
| Značka | Innolux |
| Velikost | 8.5 |
| aplikace | DPF |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 270 |
| CR | 300:1 |
| Barvy | 16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | CHIMEI INNOLUX |
| panelový model | LW850AT9301 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.5 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 184.8×110.88 mm |
| obrys | 206.1×124.48×8.5 mm |
| povrch | Antiglare (Haze 25%) |
| jas | 270 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC), CIE193150% |
| Doba odezvy | 15/35 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VCC) |
| aplikace | DPF |
