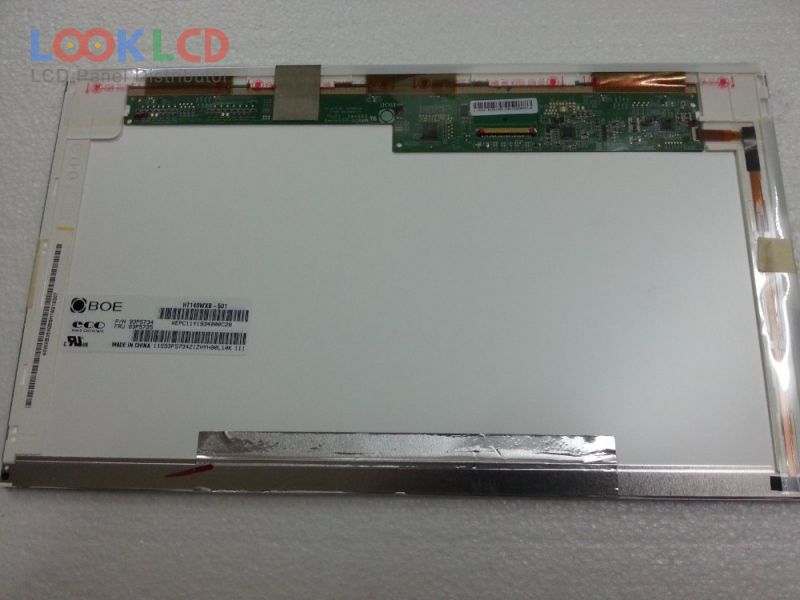

| PartNumber | HT140WXB-501 |
| Značka | BOE |
| Velikost | 14.0 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 200 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | BOE |
| panelový model | HT140WXB-501 4 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 14.0 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 309.399×173.952 mm |
| obrys | 323.5×192×5.2 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 8 (Typ.)(Tr+Td) |
| úhel pohledu | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| B140RW01 V0 | AUO | 14.0 | 1600×900 |
| B140RW02 V0 | AUO | 14.0 | 1600×900 |
| B140XTN03.9 | AUO | 14.0 | 1366×768 |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| HT140WXB-100 | BOE | 14.0 | 1366×768 |
| HT140WXB-501 | BOE | 14.0 | 1366×768 |
| HT140WXB-601 | BOE | 14.0 | 1366×768 |
| LP140WH2-TLF3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TPS1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLB1 | LG Display | 14.0 | 1366×768 |
| B140XW01 V9 | AUO | 14.0 | 1366×768 |
| HT140WXB-100 | BOE | 14.0 | 1366×768 |
| LP140WF5-SPB2 | LG Display | 14.0 | 1920×1080 |
| LT133EE10300 | TOSHIBA | 13.3 | 1366×768 |
| LTD121EQ3B | TOSHIBA | 12.1 | 1280×800 |
| LTN140AT21-W01 | Samsung | 14.0 | 1366×768 |
| LTN150PF-L02 | Samsung | 15.0 | 1400×1050 |
| LTN154BT05-001 | Samsung | 15.4 | 1440×900 |
| LTN156AT02 | Samsung | 15.6 | 1366×768 |
| N170C3-L01 | Innolux | 17.0 | 1440×900 |
