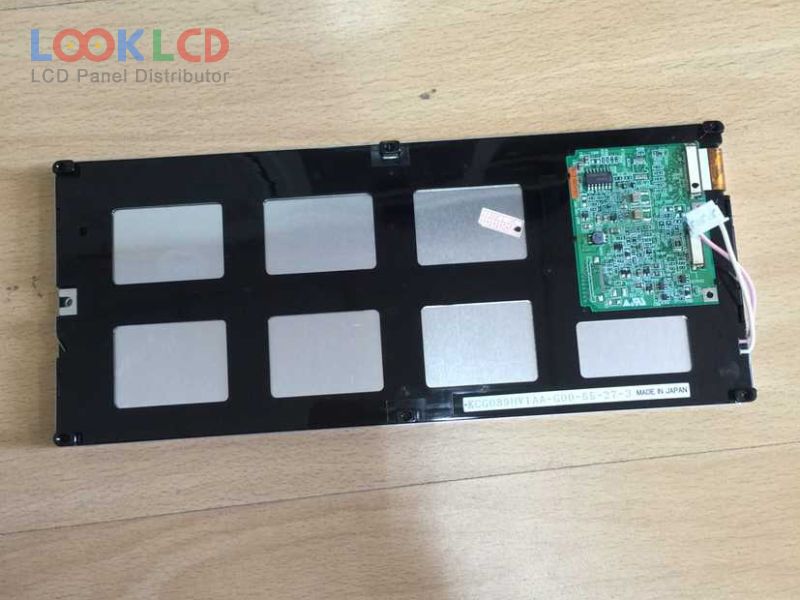

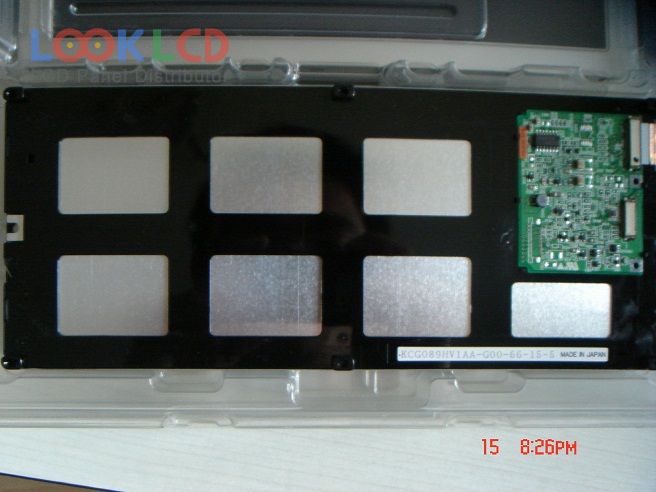

| PartNumber | KCG089HV1AA-G00 |
| Značka | Kyocera |
| Velikost | 8.9 |
| aplikace | IA |
| Rozlišení | 640×240 |
| Složení | LCM |
| Jas | 150 |
| CR | 30:1 |
| Barvy | Color |
| Podsvícení | CCFL |
| Rozhraní | Parallel Data |
| značka panelu | Kyocera |
| panelový model | KCG089HV1AA-G00 |
| typ panelu | CSTN-LCD , LCM |
| velikost panelu | 8.9 inch |
| rozlišení | 640(RGB)×240 , HVGA |
| zobrazovací mód | STN, Normally Black, Transmissive |
| aktivní oblast | 211.18×79.18 mm |
| obrys | 246×103×12.2 mm |
| povrch | Glare (Haze 0%) |
| jas | 150 cd/m² (Typ.) |
| kontrastní poměr | 30:1 (Typ.) |
| zobrazit barvy | Color |
| Doba odezvy | 190/180 (Typ.)(Tr/Td) |
| úhel pohledu | 50/50/35/20 (Typ.)(CR≥2)(L/R/U/D) |
| frekvence | 75Hz |
| typ lampy | 1 pcsCCFLOptional |
| signálové rozhraní | Parallel Data (8-bit), 20 pins |
| vstupní napětí | 3.3/5.0V (Typ.)(VDD) |
| aplikace | IA |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| B089AW01 V1 | AUO | 8.9 | 1024×600 |
| B089AW01 V3 | AUO | 8.9 | 1024×600 |
| HSD089IFW1-B00 | HannStar | 8.9 | 1024×600 |
| KCG089HV1AA-G00 | Kyocera | 8.9 | 640×240 |
| LTM09C362 | TOSHIBA | 8.9 | 1024×600 |
| LTM09C362Z | TOSHIBA | 8.9 | 1024×600 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
| NL10260BC19-01D | NLT | 8.9 | 1024×600 |
| VVX09F035M20 | Panasonic | 8.9 | 1920×1200 |
| AA104XD12 | Mitsubishi | 10.4 | 1024×768 |
| G104SN05 V0 | AUO | 10.4 | 800×600 |
| G190EG01 V2 | AUO | 19.0 | 1280×1024 |
| HLD0909-020010 | Hosiden | 9.0 | 640×480 |
| KCG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| LB104V03-TD01 | LG Display | 10.4 | 640×480 |
| LQ10D368 | SHARP | 10.4 | 640×480 |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| OEL9M0073-Y-E | Other | 1.0 | 128×64 |
| TX26D02VM1CAA | KOE | 10.4 | 640×480 |
