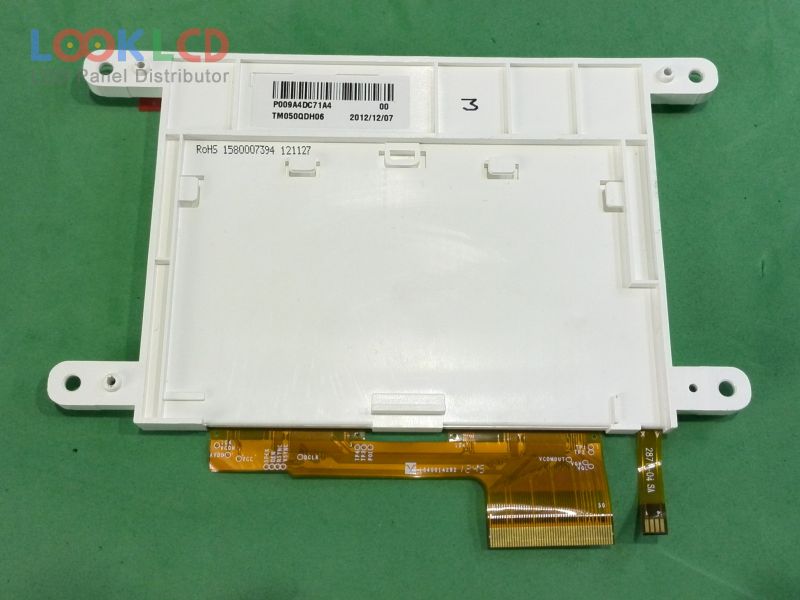

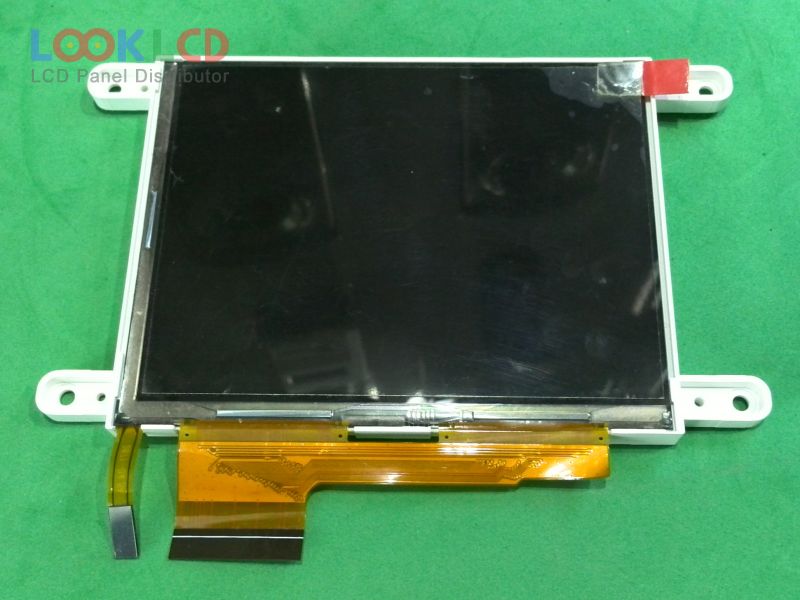

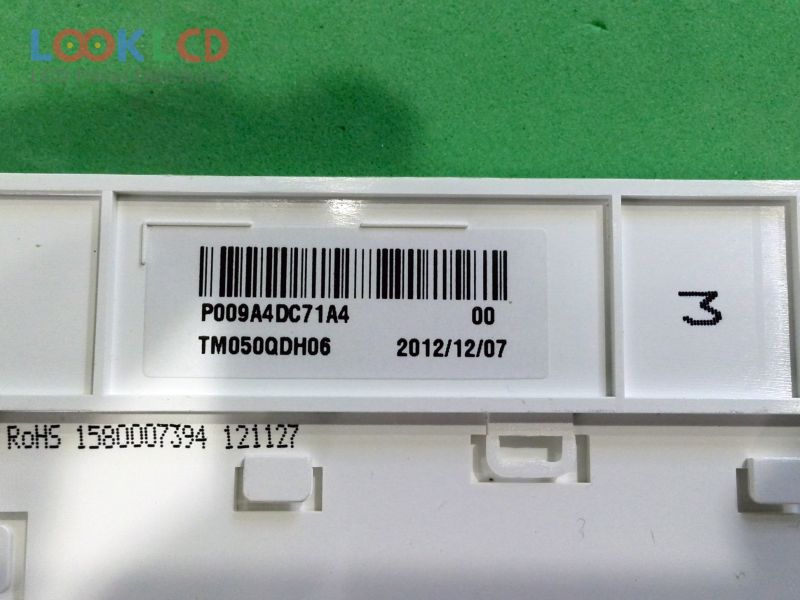

| PartNumber | TM050QDH06 |
| Značka | Tianma |
| Velikost | 5.0 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 350 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | TIANMA |
| panelový model | TM050QDH06 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.0 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 101.568×76.176 mm |
| obrys | 113.6×88.4×10 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Dithering), CIE193150% |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S5PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 50 pins |
| vstupní napětí | 3.3/5.0/15.0/-8.2V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikace | IA |
